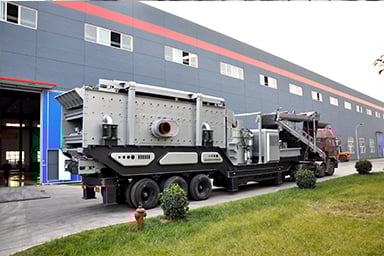

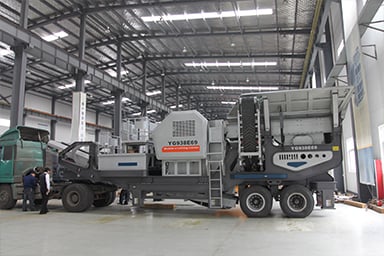

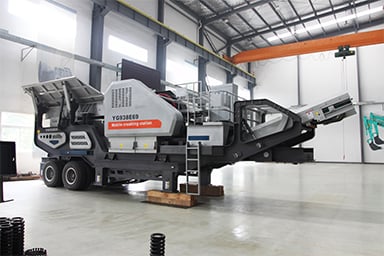

Y Series Portable Crusher


Suitable for high-efficiency and low-investment projects

ZENITH’s Y Series Portable Crusher, also known as Y Series Portable Crusher Plant, has the advantages of easy transportation, low transportation cost, flexible configuration, convenient maintenance, etc.It can be operated as an independent unit, or as two-stage crushing plant with primary and secondary crushing, or as three stage crushing plant with primary, secondary, and tertiary crushing according to different clients' requirements.

Materials:Granite, marble, basalt, limestone, quartz, river pebbles, copper ore, iron ore, etc.

Product Advantages


According to customers’ requirements, Y Series Portable Crusher Plant can be used independently or combined with other plants to form a two-stage and even three-stage crushing process.

Y Series Portable Crusher has many models which can fully cover various production needs. Its bearing base uses the integrated steel structure, solid and durable.

The general structural layout can realize the direct replacement of main parts without replacing the body, so as to satisfy the crushing and screening demands at different stages.

Y Series Portable Crusher has excellent value-holding capacity, so that investors can rapidly invest in a new project, or sell the portable crusher to get money, thus reducing the investment cost.



Working Principle of Y Series Portable Crusher Plant


A Y Portable Crusher is composed of the frame assembly, automobile components, host & auxiliary equipment, power system and hydraulic electronic control system. When moving, the mobile crusher is hooked on a trailer and then move by virtue of its wheels. During installation, with the external power, the hydraulic cylinder can get controlled by the electronic control system to finish equipment installation. During operation, with external power, motors of host and auxiliaries work to drive the equipment to work. Usually, materials are sent from the hopper or by belt conveyors to the hosts for crushing and screening. After being processed, finished products are transported by belt conveyors, too.

Technical Specs


Customer Cases


Annual 2 Million Tons Solid Wastes for Sand Making Plant

Annual 2 Million Tons Solid Wastes for Sand Making PlantMaterial: mining wastes, construction wastesCapacity: 2,000,000t/yFinished product: aggregates and manuf


Russia 50TPH Granite/Dolomite Crushing Plant

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h


500TPH Granite Crushing And Sand Making Plant

500TPH Granite Crushing And Sand Making PlantMaterial: graniteCapacity: 500t/hApplication: highway, high-speed railway, mixing stationEquipment:C6X145 Jaw Crush


The Philippines 400-500 t/h Granite Crushing Plant

Our equipment and ability to build the crushing plant have refreshed the customer's impression of Chinese design, and he admired the development of aggregate crushing industry in China.


Russia 300-350TPH Granite Crushing Plant

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Congo 150TPH Granite Stationary Crushing Plant

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h
