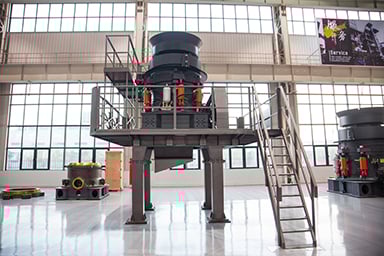

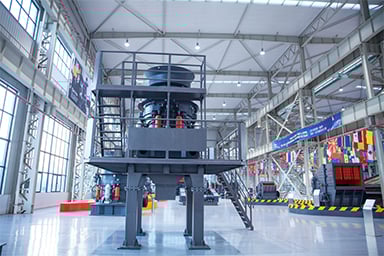

HPT Multi-cylinder Hydraulic Cone Crusher

Higher crushing ratio, larger processing capacity, better granularity and shape of finished materials

Based on the structure of traditional multi-cylinder hydraulic cone crusherwith the fixed main shaft and the eccentric bushrotating around the main shaft, and the laminating crushing principle,ZENITH greatly optimizes the structure of HPT Multi-cylinder Hydraulic Cone Crusher, which greatly improves the performance and crushing capability. Meanwhile, the hydraulic lubrication system of HPT Cone Crusher ensures more intelligent and more stable operation.

Materials:Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

Product Advantages

HPT Hydraulic Cone Crusher appliesadvanced PLC electrical system, which can continuously monitor the crusher and provide alarms to display various operating parameters.

HPT Cone Crusher optimizes the transmission parts and the lubrication and sealing structure. It has strong holding capacity, larger crushing power, higher efficiency yet lower noises.

HPT Cone Crusher adopts the laminating crushing principle to crush materials. The final products are cubical and of high content of fine powder.

HPT Cone Crusher is equipped with several crushing cavities. Operators can freely make choices among different cavities by changing only a few spare parts like the lining plate.



Working Principle of HPT Cone Crusher

When the HPT Hydraulic Cone Crusher is working, the motor drives the transmission shaft rolling through the pulley and the V-belt. The transmission shaft drives the eccentric bushrolling around the main shaft through the large and small bevel gears.The eccentric bushdrives the moving cone to do the swing motion, to make themoving cone sometimes close to and sometimes far from the concave. Then the materials are impacted, extruded constantly in the crushing cavity formed by concave and mantle and then are crushedand the broken materialsare discharged from the lower port.

Technical Specs

Customer Cases

Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h

Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h

Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
