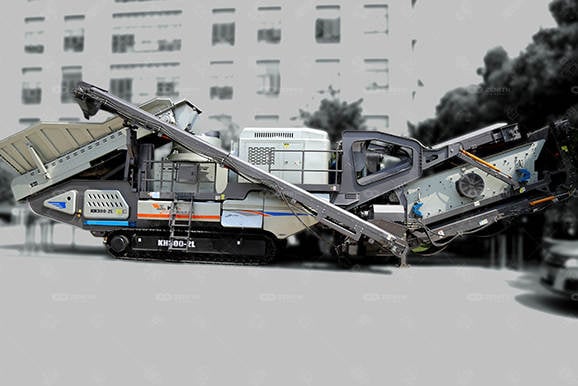

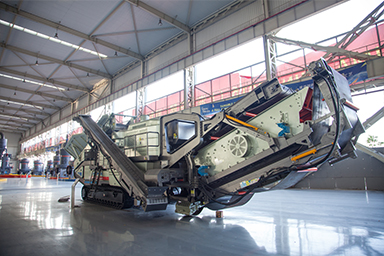

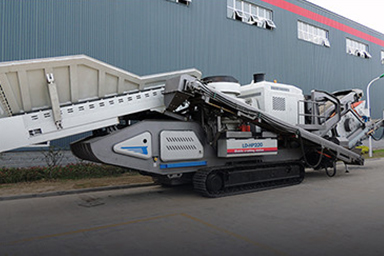

LD Series Mobile Crusher


Flexible, fast transition, faster production, environmentally friendly

ZENITH’s LD Series Mobile Crusher, also known as LD Series Mobile Crushing Plant, is developed on the basis of years of experience in R&D and production of mobile crushing plants. It absorbsadvanced foreign mobile crushing technology. The device breaks through the electric drive mode, and uses hydraulic and other non-powered methods to drive and control crawler’s walking, equipment installation and production operations. The energy utilization efficiency is higher.

Materials:Granite, marble, basalt, limestone, quartz, river pebbles, copper ore, iron ore, etc.

Product Advantages


The LD Mobile Crusher adopts hydraulic drive to control operations. The transmission is more stable and can realize stepless speed change.

Thanks to the heavy-duty tracked chassis, the mobile crusher has good grounding performance.With powerful driving force, it is able to climb or work under severe conditions.

With the fully hydraulic system control, the LD Series Mobile Crusher is more flexible and controllable and the production efficiency is higher.

According to customers’ requirements, LD Series Mobile Crushercan be used independently or combined with other plants to form a two-stage and even three-stage crushing process.

Working Principle of LD Series Mobile Crusher


A LD Mobile Crusherconsists of crawler chassis, frame assembly, main engine and auxiliary equipment, power system and hydraulic electronic control system. When moving, power is supplied through the power system, and the crawler chassis is driven by the hydraulic electronic control system.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h


Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h


Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
