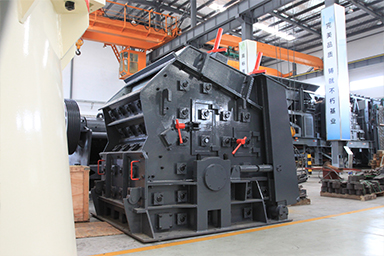

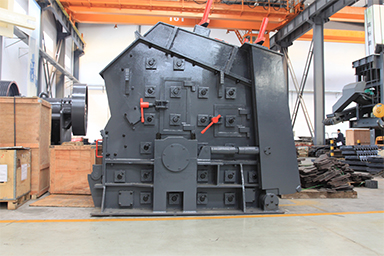

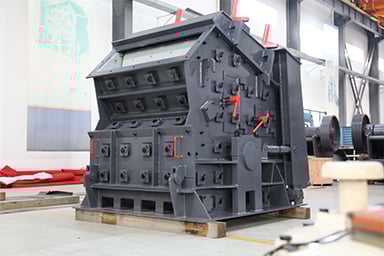

PF Impact Crusher

Integrated application of the scientific research achievements, higher crushing efficiency

PF Impact Crusher makes use of impact energy to crush materials. Rotor rolls at high speed under the effect of motor, and the entered materials from feed opening strike to the hammer bar on the rotor with high speed to be crushed. Then the crushed materials are impacted again to the impact plate to be crushed again, and finished materials are discharged from discharge gate.

Materials:Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.

Product Advantages

The hammer bar is made of high chromium material and wear-resistant materials. After heat treatment, it has good resistance to mechanical and thermal shock.

A self-weight safety device is equipped. When unbreakable materials enter the crushing cavity, they'll be discharged automatically, and thereby the equipment can get protected.

For users' different requirements, ZENITH installs a mechanical adjustment device on the top of PF Impact Crusher. Users can realize discharging adjustments by twisting the bolt of the device.

Ratchet clamping devices are equipped at both sides of the equipment. When the equipment stops to change parts or for maintenance, users can open the back upper cover easily.



Working Principle of PF Impact Crusher

PF Impact Crusher makes use of impact energy to crush materials. When it is working, rotor rolls at high speed under the effect of motor, and the entered materials from feed opening strikes to the hammer bar on the rotor with high speed to be crushed; then the broken materials are impacted again to the impact plate to be crushed again, and finished materials are discharged from discharge gate. By adjusting the clearance between impact rear and rotor, discharging size and shape of materials and can be adjusted.

Technical Specs

Customer Cases

Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h

Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h

Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h

Customer Cases

Oman 300TPH Limestone Crushing Line

Russia 50TPH Granite/Dolomite Crushing Line

Russia 300-350TPH Granite Crushing Line

Congo 150TPH Granite Stationary Crushing Line

Jeddah 300TPH Marble Crushing Line

Kenya 30-50TPH Phonolite Crushing Line
