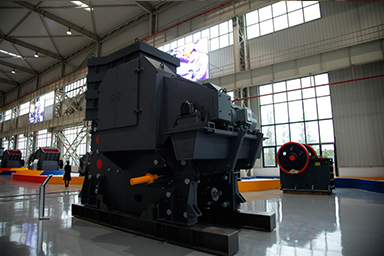

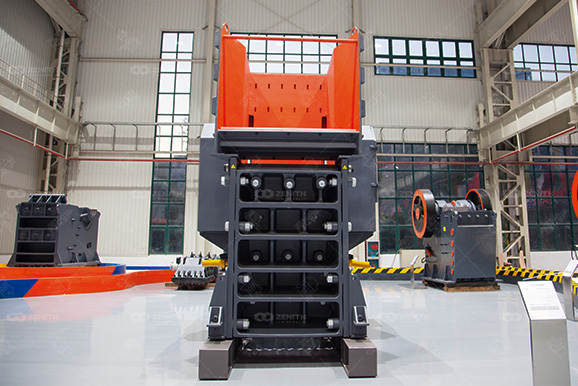

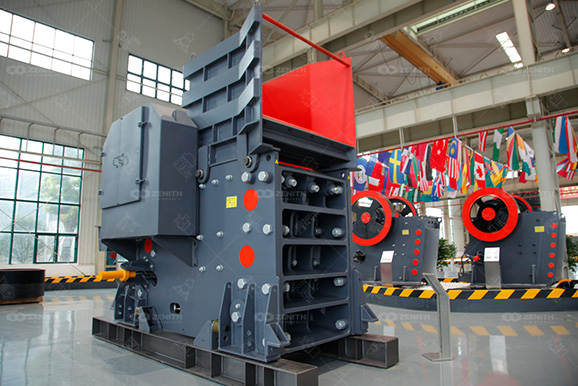

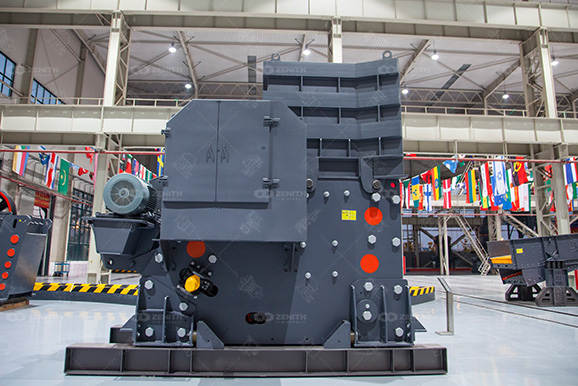

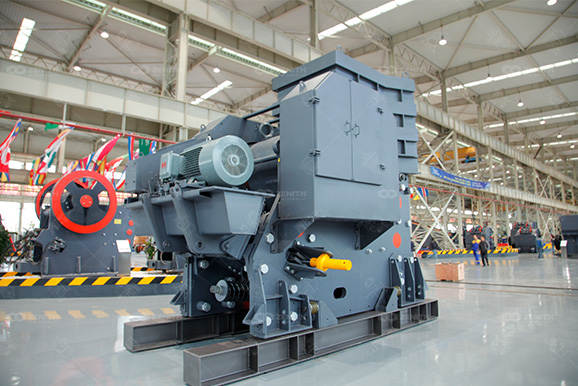

C6X Jaw Crusher


Top configurations & quick installation

The equipment structure, use functions and product efficiency… all indexes of C6X Jaw Crusher present modern advanced technology, solving such problems as low production efficiency, and difficult installation and maintenance of the existing jaw crushers on the market. It is the ideal coarse crushing equipment.

Materials:Granite, marble, basalt, limestone, quartzite, pebble, iron ore, copper ore.

Product Advantages


At the same power consumption, C6X Jaw Crusher can achieve higher crushing efficiency. The customer's investment return is even higher.

Stable and high-efficiency production.C6X Jaw Crusher can run efficiently when crushing hard materials.

High-quality raw materials and reliable design provide C6X Jaw Crusher with sufficient strength and durability to crush super-hard material and thus reduce the maintenance costs.

The equipment is mainly lubricated with grease. It can be equipped with manual or automatic grease lubrication system according to the needto reduce maintenance difficulty.



Working Principle of C6X Jaw Crusher


The motor of C6X Jaw Crusherdrives belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw pushes the movable jaw plate to the fixed jaw plate, materials are crushed or chopped. When the movable jaw and plate retreats under the function of the eccentric shaft and spring, the materials which previously have been crushed are discharged from the lower part of the jaw plate. With the continuous rotation of the motor, the movable jaw can periodically crush and discharge materials to achieve mass production.

Technical Specs

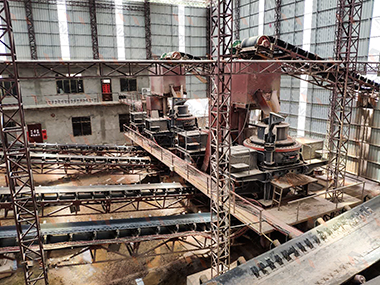

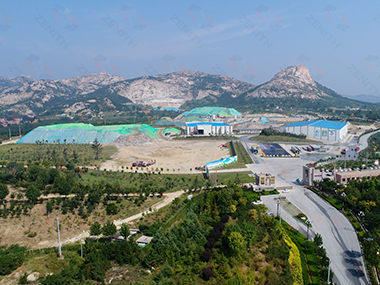

Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h


Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h


Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
