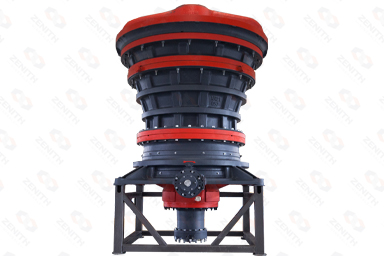

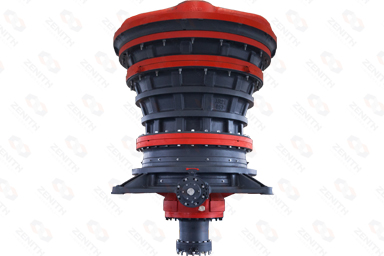

HGT Gyratory Crusher

An ideal choice for large-scale coarse crushing projects

HGT Gyratory Crusher was developed to cater for market demands for large crushing equipment. It combines the industrial developmental needs with internationally advanced crushing technologies. It integrates mechanical, hydraulic, electric, automation and intelligent controlling technologies. Compared with traditional gyratory crushers, it has higher crushing efficiency, lower production costs and more convenient maintenance.

Materials:Granite, basalt, diabase, limestone, dolomite, gold ore, copper ore, iron ore, manganese ore and so on

Product Advantages

Heavy-duty framework, large-dimension integrated axis assembly and high-performance bearings can validly extend service life, ensure safer operation and reduce crushing costs.

HGT Gyratory Crusher’s various automated devices and user-friendly designs make checks and maintenance more convenient.

The axis is forged integrally, which eliminates risks that the moving cone gets loose, so that the production can be more stable, and further the downtime can be shortened.

Whether being used in fixed or semi-mobile crushing lines, on ground or underground, HGT Gyratory Crusher is applicable in severe crushing environment.



Working Principle of HGT Gyratory Crusher

HGT Gyratory Crusher is mainly composed of the beam, frame, moving cone, eccentric sleeve, transmission part and hydraulic cylinder. Driven by the motor, the horizontal shaft starts to rotate which then further makes the eccentric sleeve rotate under the assistance of gear. Next, the eccentric sleeve drives the moving cone to swing in a circular motion to squeeze and crush rocks continuously.

Adjusting the hydraulic cylinder on the bottom of moving cone to let the cone move up and down can make the adjustment of the discharge port's opening easier, and, therefore, the granularity of final products can get better control. Besides, the hydraulic cylinder has a protection function when iron blocks intrude. If there are unbreakable materials such as iron blocks entering the crushing cavity, the hydraulic cylinder will drop the moving cone to release iron blocks while the crushing process doesn't stop.

Technical Specs

Customer Cases

Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h

Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h

Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h

Customer Cases

Oman 300TPH Limestone Crushing Line

Russia 50TPH Granite/Dolomite Crushing Line

Russia 300-350TPH Granite Crushing Line

Congo 150TPH Granite Stationary Crushing Line

Jeddah 300TPH Marble Crushing Line

Kenya 30-50TPH Phonolite Crushing Line
