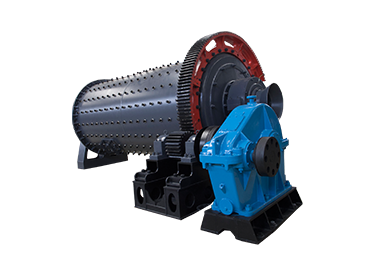

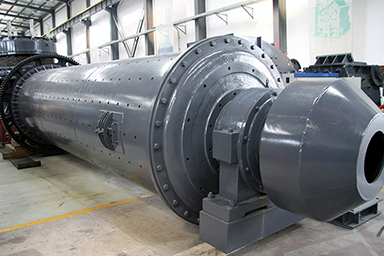

MQ Series Ball Mill


Strong adaptability, reliable performances and continuous production

Ball mill is the grinding equipment which is most widely used. ZENITH’s ball mills are widely used in various types of ores' beneficiation, electricity, chemical engineering andcement industries. With high comminution ratio,it can carry out dry or wet pulverizing and can meet demand for large-scale sustainable production.

Materials:Coal, cement clinker, limestone, calcite, dolomite, talc, etc.

Product Advantages


Traditional sliding bearings are replaced by double row roller bearings in small and medium-sized ball mills to reduce energy consumption.

The PLC control system can be selected to improve the automation control level of the grinding mill.

The ball mills have closed structure, so there is less dust spill-over, and it is beneficial and friendly to the surrounding environment.

ZENITHS’s ball mills have an excellent balance between productivity and energy consumption. Users can get higher capacity under the premise of low energy consumption.

Working Principle of Ball Mill


As the mill rotates, steel balls work to grind the materials. The mill rotates approximately once every couple of seconds.
The grinding system uses either 'open circuit' or 'closed circuit'. In an open circuit system, the feed rate of materials is adjusted to achieve the desired fineness of the product. In a closed circuit system, coarse particles are separated from the finer ones and sent back for further grinding.
When final products reach the fineness standard, they are discharged out of the mill.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h


Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h


Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
