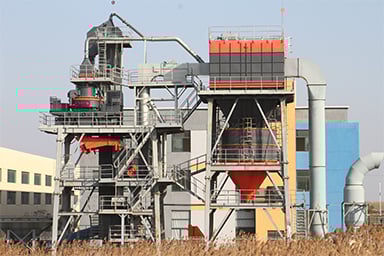

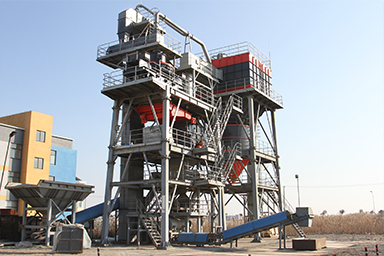

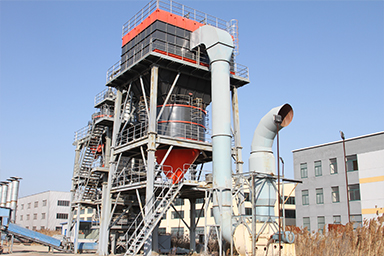

VU Tower-like Sand-Making System


Eco-friendly production standards, better quality of finished aggregates

ZENITH’s has pushed out a complete aggregate processing system to produce artificial sand and gravel, called VU Tower-like Sand-making System, which can overcome some problems. The quality of the finished sand meets the national standards. During operation, there is no sludge, no waste water and no dust in the production process, which fully meets the national environmental protection requirements and brings huge benefits and development opportunities to the aggregate field and other industries.

Materials:Granite, marble, basalt, limestone, quartz, river pebbles, pebbles, bluestone, etc.

Product Advantages


The VU Sand-making System adopts original grinding technology and waterfall shaping technology, so the grade of finished sand is reasonable and grain shape is round and smooth.

VU Sand-making System can process cheap and easy-to-get “stone chips” into high-quality sand to meet huge demands for sand in the market and to make high profits.

VU Sand-making System adopts fully enclosed transportation, production and negative -pressure dust removal design to ensure no sewage, no sludge, no dust and noise emission.

The centralized control system can monitor situations of all devices online, quickly set and maintain optimal status to ensure high quality of finished product.

Working Principle of VU Tower-like Sand-Making System


The VU system consists of VU impact crusher, mold control screen, grain-optimized machine, humidifier, dust collector, central control system, steel structure and other equipment and modules. It is a complete system which produces sand in dry process.
After VU sand-making and reshaping,raw materials below15mm (which may be cheap, easy-to-obtain materials such as stone chips, melon stone and stone powder) are divided into three ways under the action of mold control screen and dust removal module: stone powder, return material and quasi- finished sand. The stone powder is uniformly stored in the powder ore bin after passing through the dust removal module, and the quasi-finished sand enters the grain-optimized machine for further shaping, and the processing is completed after humidification and stirring. Through the VU system, after reasonable and efficient processing of the raw materials, users can get high-quality artificial sand with reasonable grade, round and smooth shape and controllable granularity.The artificial sand produced can be uniformly recycled and used (The applicable range depends on what raw materials are).

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
