SP Vibrating Feeder
SP Vibrating Feeder
Vibrating Feeder

SP Vibrating Feeder

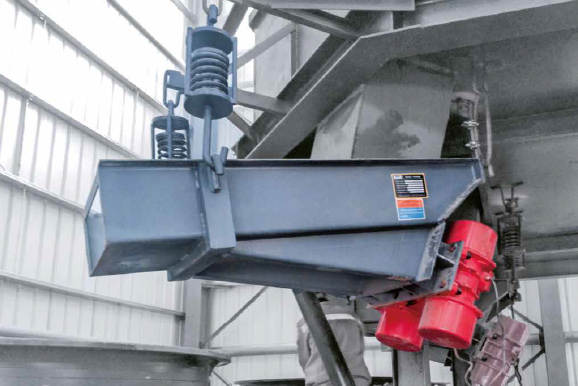

Double vibration motor drive, suspension or seat type installation, adjustable installation angle for 0-10°

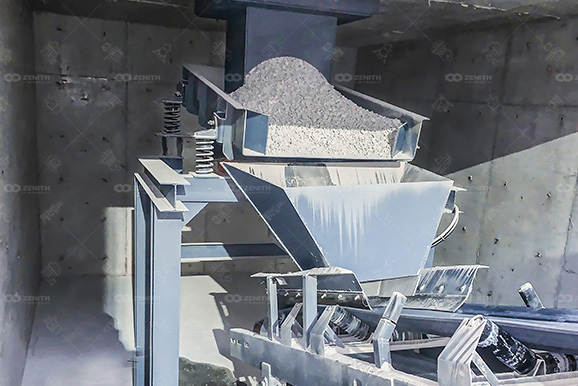

SP series is a new type of vibrating feeder developed by ZENITH on the basis of many years of practical experience in R & D, combined with the practical application of feeding and conveying equipment, and widely drawing on the independent R & D of cash metal at home and abroad. The equipment is simple and compact in structure, high in production capacity, reliable in operation and convenient in maintenance. It can be used to evenly and continuously feed small and medium-sized block, grain and powder materials from the storage bin to the receiving device. It is an ideal upgrading product of the traditional GZG or GZD Inertial Vibration Feeder.

Input Size: 0-500mm

Capacity: 0-850t/h

Applicable Materials: granite, marble, basalt, limestone, quartzite, pebble, copper ore, iron ore, coal, etc.

Product Advantages




Double vibrating motor can provide stable and sufficient feeding capacity for the secondary or tertiary crushing equipment at the rear end and improve the processing capacity.



The installation angle can be adjusted between 0-10 ° or the eccentricity of the vibrating motor can be adjusted to change the magnitude of the exciting force and then adjust the feeding amount.



In the design of the equipment, a variety of process requirements are fully considered, and suspension or seat type installation is adopted, which is better used in various complex working conditions.

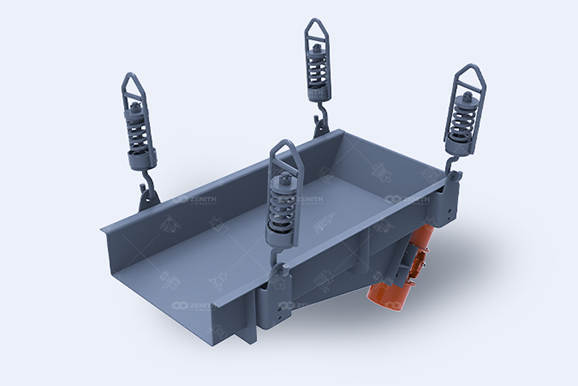

The equipment is composed of tank body, support spring and vibration motor, with simple structure; the core part adopts Italian brand vibration motor, which is convenient and reliable for operation and maintenance.

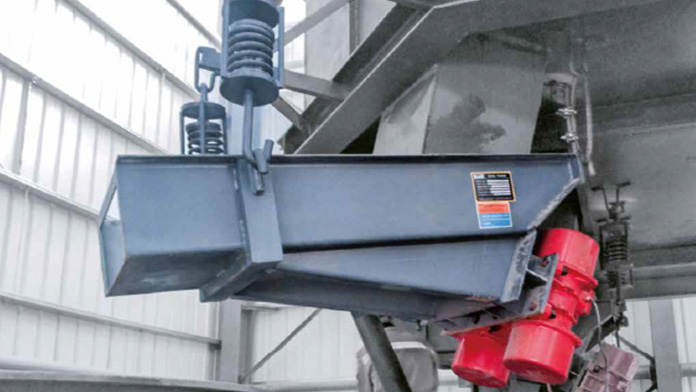

Working Principle of SP Vibrating Feeder


SP series vibrating feeder adopts vibrating motor as the excitation source, and two vibrating motors are placed on the tank body at the rear or side. Its working principle is that two vibrating motors rotate in the opposite direction. When the motor rotates, the eccentric blocks at both ends of the motor generate the exciting force, and the driving equipment makes reciprocating linear vibration in the inclined direction of the feeding tank. When the component of tank vibration acceleration is greater than the component of gravity acceleration in the vertical direction, the materials in the tank are thrown up, and jump forward according to the trajectory of parabola. Every time the tank vibrates, the materials are thrown up once, so that the materials continuously jump forward at the tank vibration frequency, so that the materials are pushed slowly from the feeding end to the discharging end to achieve the purpose of feeding.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
