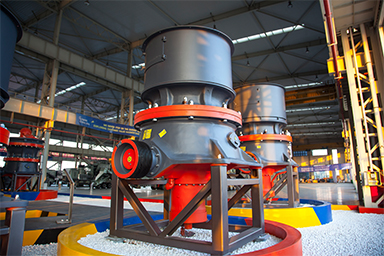

HST Single-cylinder Hydraulic Cone Crusher

Larger processing capacity, safer and more intelligent, higher efficiency

HST Single-cylinder Hydraulic Cone Crusher is a new type of high-efficiency crusher independently developed and designed by ZENITH with many years of experience which absorbed the advanced crusher technology of the United States and Germany. The Cone Crusher combines mechanical, hydraulic, electrical, automatic and intelligent control technologies, and it represents the advanced crushing technology of the world.

Materials:Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

Product Advantages

Combined with optimized strength design and high-quality components, HST Cone Crusherhas stronger capacity, higher crushing ratio, and stronger throughout capacity.

HST Cone Crusher is equipped with automatic control system. It can continuously monitor the internal load of the crusher and automatically adjust the equipment to play the best performance.

HST Cone Crusher has a simple structure, which not only makes inspection and maintenance more convenient, but also lowers maintenance costs.

HST Hydraulic Cone Crusher has a variety of standard crushing chamber types to be chosen, which can fully meet various production requirements.



Working Principle of HST Cone Crusher

When the HST Cone Crusher works, the motor drives the transmission shaft rotate through the pulley and the V-belt. The transmission shaft lets eccentric bush rotate through the large and small gears. The movable cone makes a rotary movement under the force of the eccentric bush through the main shaft, making the movable cone and fixed cone sometimes close to or sometimes far from concave. The material can be crushed after being extruded and impacted in crushing chamber between the concave and the mantle, and the broken materials are discharged from the lower port.

Technical Specs

Customer Cases

Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h

Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h

Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
