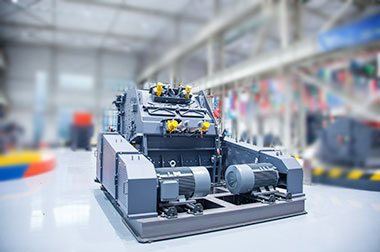

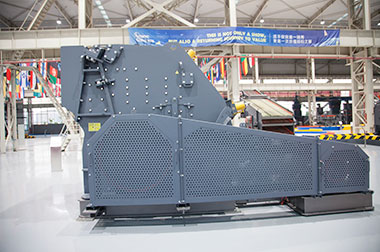

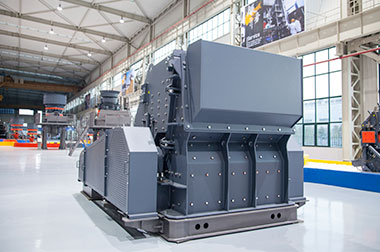

CI5X Impact Crusher


Integrated application of scientific research achievements, higher crushing efficiency

In order to meet the demands of users for high profits, low costs and energy conservation, ZENITH has developed a new generation of high-efficiency coarse and medium-fine crushing equipment—CI5X Impact Crusher, which becomes the ideal upgrade of conventional crushing equipment.

Materials:Limestone, feldspar, calcite, talcum, barite, dolomite, kaolin, gypsum, graphite

Product Advantages


CI5X Impact Crusher integrates many latest scientific research achievements, which makes the crushing operation and maintenance reach a higher level.

CI5X Impact Crusher adopts high-precision rotor with great rotation inertia and high-quality bearings to ensure the precision and high bearing capability of the rotor.

CI5X Impact Crusher adopts multifunctional hydraulic operational system. It is convenient for replacement of hammer and impact blocks and for granularity control.

CI5X Impact Crusher has a high-efficiency, involute-shaped crushing chamber where materials tend to be cubical after being crushed, better satisfying the aggregate production.

Working Principle of CI5X Impact Crusher


The CI5X Impact Crusher uses impact energy to crush materials. When materials enter the action area of hammer, they’re crushed by the high-speed impact of the hammer, and then thrown onto the impact device installed above the rotor to be crushed again. Next, materials bounce from the lining plate to the hammer area to have another crushing. This process is repeated continuously until materials reach the desired granularity and are discharged from the lower part of the plate. Adjusting the clearance between the impact rack and the rotor rack can control the size and shape of materials. This crusher adopts a spring safety device after the impact plate. When unbreakable materials enter the crushing chamber, the front and rear impact rack retreat and then unbreakable materials are discharged out of the machine.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
