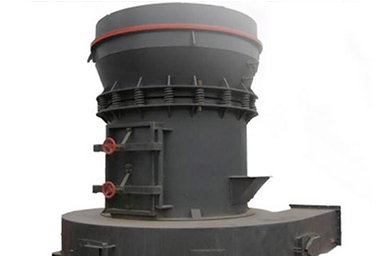

Raymond Mill

Raymond Mill


High grinding efficiency, lower energy consumption, higher economic profits

In order to meet the requirements of different application areas, the development idea of "energy saving, high reliability, precision, automation" is an inevitable trend. Now, Raymond mills at current are beneficial for energy saving and environmental protection. They have high processing capacity, high separation efficiency and low energy consumption. It’s expected that they will be more popular.

Materials:Limestone, gypsum, coal, calcite, barite, dolomite, talc, calcium carbonate, kaolin, petroleum coke, etc.

Product Advantages


From raw materials to finished powders, the milling system is a complete powder preparation system. The investment costs are totally acceptable.

Under ideal conditions, a Raymond Mill consumes less energy than other ordinary mills.Its electricity consumption is lower than that of ball mills at the same level by over 60%.

The Raymond Mill forms a complete closed-circuit circulation system with other auxiliary devices together. The system runs under negative pressure. It is more eco-friendly.

The new generation of Raymond Mill has made a lot of improvements. These improvement effectively the stable and efficient production.

Working Principle of Raymond Mill


When the Raymond Mill is working, materials to be broken are fed into the machine from the feed hopper on the side of machine shell. Relying on the grinding roller device which hangs under the host’s star rack, materials revolve around the vertical axis on the one hand and rotate on the other hand. Because of the eccentric force brought by revolving and rotation, the grinding roller device swings outwards to press against the grinding ring, so that the shovel blade can send materials into the space between grinding rollers and the grinding ring. Next, during grinding rollers roll and squeeze, materials are broken and ground.
Affected by the eccentric force, grinding rollers would tightly press the grinding ring. So, although grinding rollers and the grinding ring are somewhat abrasive, the yielding and fineness of finished products are kept. Besides, the replacement cycle for grinding rollers and the grinding ring is long, free from the shortage that centrifugal mills need to replace vulnerable parts frequently. As for airflow separation, the airflow flows and circulates along the route: the fan—the mill shell — the cyclone separator —the fan. Thus, compared to high-speed centrifugal mills, the Raymond Mills are of little dust, clean and pollution-free.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
