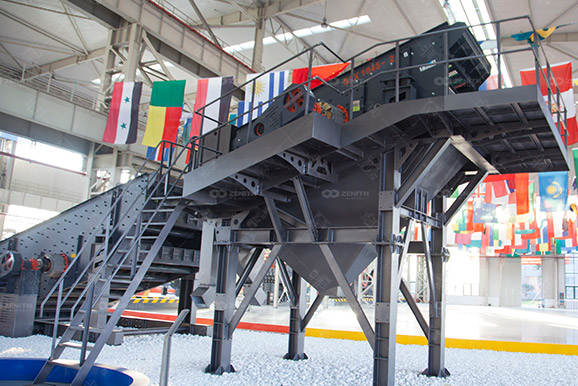

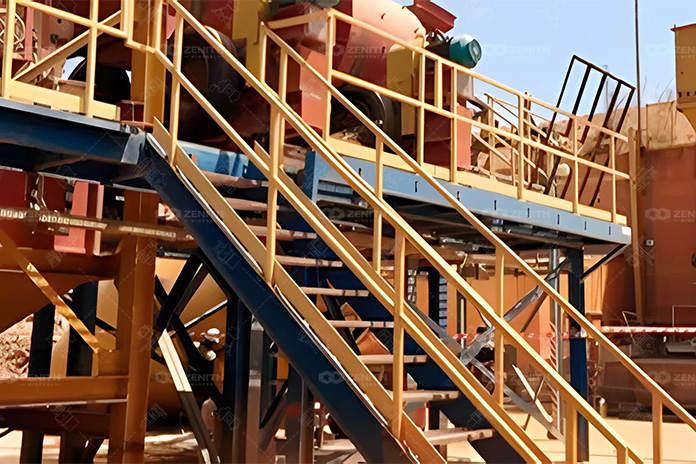

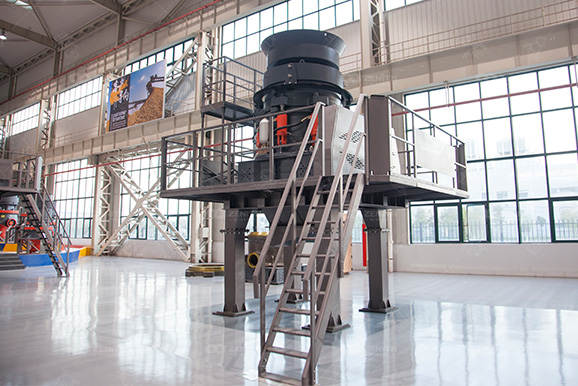

MS Series Steel Platform


standard modular combination, self-lining pressure-bearing raw material bin, high safety and environmental protection standard

MS series Steel Platform, guided by global high standard design idea, adopts the standard modular design concept, with fast delivery cycle, convenient transportation and installation, which can meet the requirements of the current construction and use of crushing and screening plant for installation cycle. With the help of finite element analysis technology, it has high overall reliability, less maintenance, and high safety standards, which fully meets the relevant international safety equipment.

Input Size: 0-1000mm

Capacity: 0-1200t/h

Applicable Materials: granite, marble, basalt, limestone, quartzite, pebble, iron ore, copper ore, mine waste, construction waste, etc.

Structure Advantages




Accept ZENITH’s design standard, MS series Steel Platform also reference to large home and abroad and industrial standard, such as National Standard GB4053 and GB50017, International Standard ISO_14122, Australian Standard AS_1657, etc.



Not only the main steel platform considers the support installation of the main machine and the matching belt machine hopper, but also uses the international large-scale finite element analysis software for stress analysis and calculation.



The dust-proof design is considered to reduce the dust in the process of operation and effectively reduce the input of the subsequent dust removal system; and the standard dust cover is specially designed as the dust removal optional component.



MS series Steel Platform adopts high-quality paint standard, through sand blasting, grinding, painting and other multiple spraying processes, to reduce product rust in long-term transportation and use process.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Plant

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Plant

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Plant

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Plant

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Plant

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Plant

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
