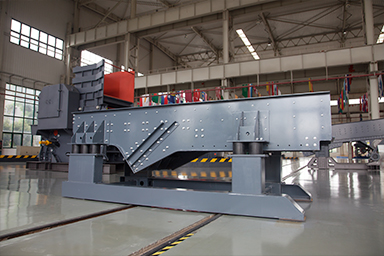

GF Vibrating Feeder


Two-stage drop structure improves the ability to pre-screen materials.

GF Vibrating Feeder is the grizzly feeder driven by the vibrating motor. As an efficient primary feeder, it is specially designed for mobile crushing stations (also known as “mobile crushers), semi-fixed crushing lines and small stock ground (Usually, the capacity is below 250TPH and the available volume of material silo is below 30m3.) It is suitable to feed materials into jaw crushers, primary impact crushers and hammer crushers, etc. Sometimes, it functions as a primary conveyor.

Materials:Limestone, basalt, granite, feldspar, marble, calcite, barite, etc.

Product Advantages


GF Feeder's biggest vibration strength can reach 4.0G and its capacity is 20% higher than traditional TSW Feeder.

GF Vibrating Feeder adopts a drop structure composed of two layers of grizzly bars, which can effectively screen out fine materials whose size is smaller than that of CSS.

GF Vibrating Feeder takes vibrating motor as the vibration source. Users can control vibration force by adjusting the motor. The operation is quite easy, convenient and stable.

Compared with traditional metal spring, the rubber spring GF Vibrating Feeder adopts owns higher holding capacity and longer service life.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h


Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h


Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
