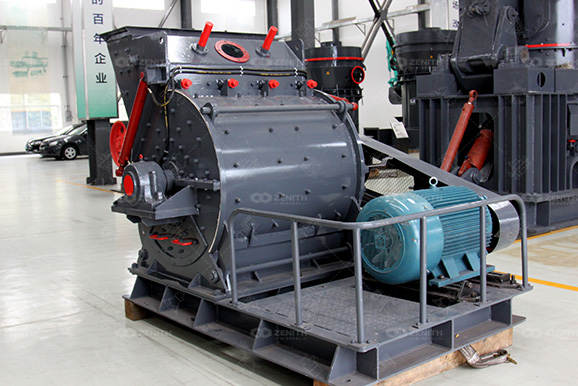

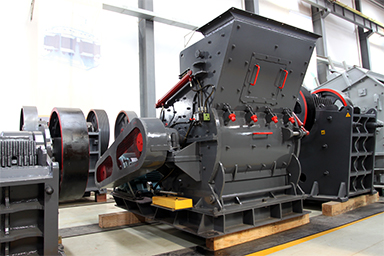

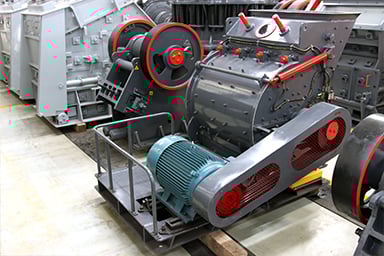

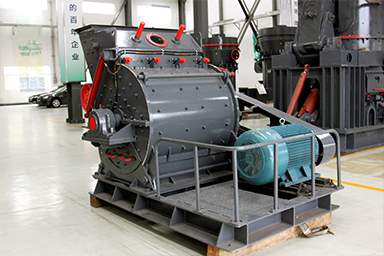

Hammer Mill

Wide applications, high productivity, easy to operate

The Hammer Mill (also called HM series coarse-powder grinding mill) is one kind of new efficient grinding machines. This grinding mill is mainly used for coarse powder production and sand production. The output size can be controlled within 0-3mm with a 90% of screening ratio.The hammer mill is widely used in metallurgy, mining, chemical engineering, cement, construction, industrial and mining industries, etc.

Materials:Coal, gypsum, limestone, alums, calcite, dolomite, barite, kaolin, talc, etc.

Product Advantages

The Hammer Mill adopts closed structure, solving the problems of dust pollution and ash leakage in the workshop.

According to users’ requirements, the granularity of finished products can get well controlled.

According to users’ requirements, the granularity of finished products can get well controlled.

The Hammer Mill is compact and has few spare parts, which is beneficial and easy for maintenance and management.



Working Principle of Hammer Mill

A Hammer Mill mainly relies on the impact energy to process materials. When the Hammer Mill is working, the motor drives the rotor to rotate at high speed, and materials enter the cavity evenly. The high-speed rotary hammer impacts and shears materials. At the same time, affected by gravity, materialswould rush from the high-speed rotating hammer head towards the baffle and screen strips inside the frame body. Materials larger than the mesh size are left on the screen plate to be struck and ground by the hammer again until they reachthe required size. Finally, qualified powders are discharged through the screen plate out of the mill.

Technical Specs

Customer Cases

Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h

Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h

Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
