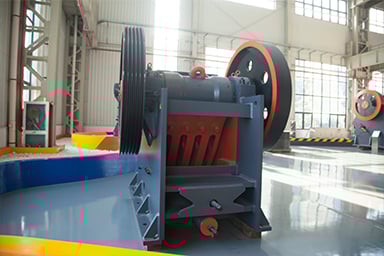

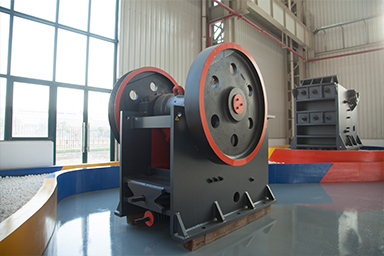

PE Jaw Crusher


Simple design structure, excellent working performance

PE Jaw Crusher, as a classical primary crushing machine with stable performances, is widely used in metallic and non-metallic ore crushing, building aggregate crushing and sand making.

Materials:Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore

Product Advantages


PE Jaw Crusher is researched and developed based on century-old accumulations and inheritances. Therefore, performances of PE Jaw Crusher are totally reliable.

Integrated steel structures are used for the base of bearing. The crushing chamber is deep without dead zone, increasing the capacity and the output.

When the machine is overloaded, the elbow plate transmission device, designed by ZENITH, is automatically off so that the operation can stop to ensure production safety.

ZENITH’s PE Jaw Crusher has different models to comprehensively cover all kinds of crushing demands at present market.



Working Principle of PE Jaw Crusher


Taking the motor as power, the PE Jaw Crusher drives the eccentric shaft by the V-belt and the sheave through the motor pulley, to make the movable jaw do reciprocating movement according to the predetermined trajectory. Then it crushes materials inside the crushing cavity formed by the fixed plate, the movable plate and the side guard plate and discharges the materials from the lower discharge port.

Technical Specs


Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h


Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h


Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
