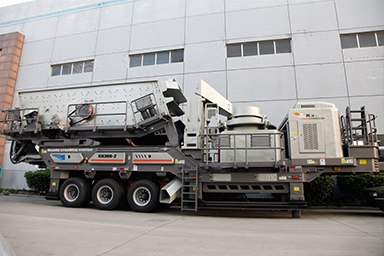

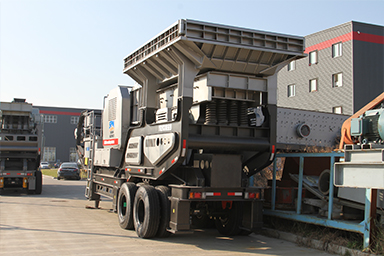

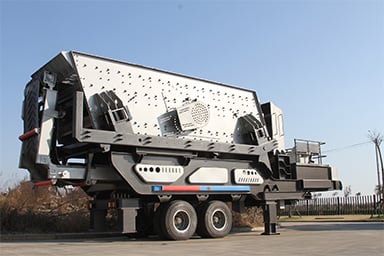

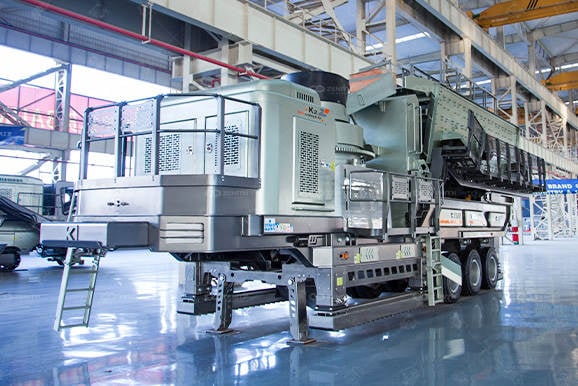

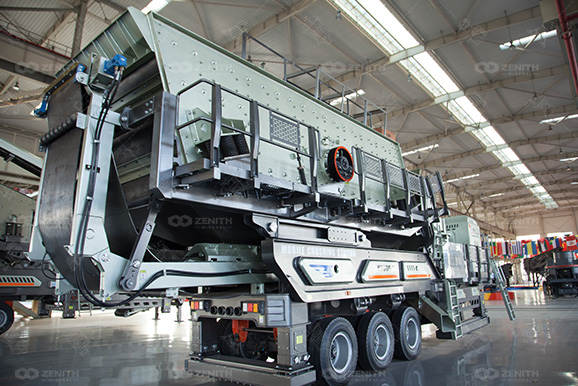

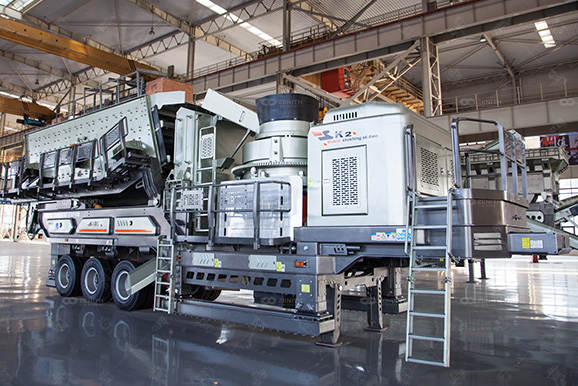

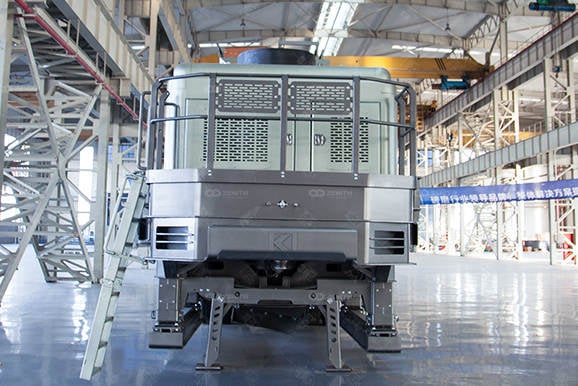

K Series Portable Crusher

Flexible,eco-friendly, fast transition, faster production

K Series Portable Crusher, also known as K Series Portable Crushing Plant, is a new type of equipment developed on the basis of years of independent research and development, combined with the latest user needs. It has been optimized and innovated in structural design, equipment configuration and combined application. Its combination is more flexible, which greatly expands the application fields and truly realizes the close processing of materials.

Materials:Granite, marble, basalt, limestone, quartz, river pebbles, copper ore, iron ore, etc.

Product Advantages

K Portable Crusher has 7 series amounting to 72 models, able to cover various mining production needs such as coarse crushing, medium fine crushing, fine crushing and shaping.

Compared to fixed lines, K Portable Crushers have a shorter engineering cycle. Besides, there is no demolition after projects finish, more economical and eco-friendly.

The generalized structure layout can directly exchange the main machine without changing the body, and meet the crushing and screening requirements of different stages.

All actions are controlled by an intensive hydraulic system. So many adjustments get easier. With centralized lubrication, operators can perform maintenance easily and quickly.

Working Principle of K Series Portable Crusher

ZENITH’s K Portable Crusher mainly consists of frame assembly, automobile components, main engine and auxiliaries, power system and hydraulic electronic control system. When moving, the trailer is used to provide traction to drive the frame, relying on the wheels of the frame itself to assist walking. When installing, relying on external power, through hydraulic electronic control system to control hydraulic cylinders and other actions to complete the equipment installation. When working, with external power, motors of hosts and auxiliaries work to drive the equipment to work. After materialsare crushed, they are sieved from the silo and transportedby the belt conveyor.

Technical Specs

Customer Cases

Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

Russia 50TPH Granite/Dolomite Crushing Line

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Line

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h

Jeddah 300TPH Marble Crushing Line

Location:Jeddah
Material:Jeddah
Output Size:0-1mm, 1-4mm, 4-7mm, 7-10mm, 10-14mm, 14-18mm, 18-35mm
Capacity:250-300t/h

Kenya 30-50TPH Phonolite Crushing Line

Location:Awasi, Kenya
Material:Phonolite
Input Size:Below 350mm
Output Size:0-6mm, 6-10mm, 10-28mm
Capacity:30-50t/h
