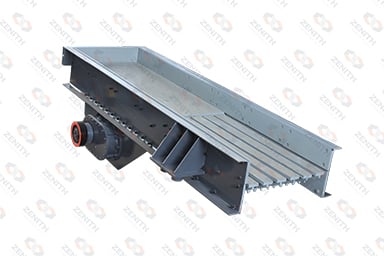

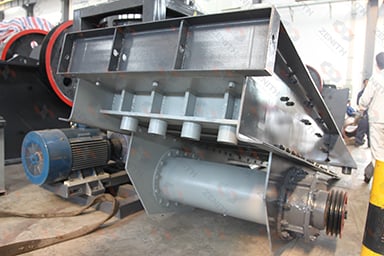

GZD Series Vibrating Feeder

Classic design; pre-screening function

The GZD Vibrating Feeder is the tool feeding the lump, granular and powdery materials from the warehouse or hopper into the material receiving equipment in a uniform and continuous manner or by certain amount. In crushing lines, this product can feed the materials in a continuous and uniform manner to the crushing machine and screen the materials primarily.

Materials: Granite, marble, basalt, limestone, quartzite, river pebble, copper ore, iron ore, etc.

Product Advantages

GZD Vibrating Feeder can be used to feed various raw materials. The feed chute is equipped with single layer of grate bars, which can simply pre-screen the materials to remove the fine materials and sundries in the raw materials.

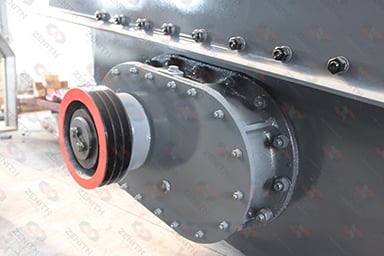

It adopts double eccentric shaft vibration exciter, which is of powerful exciting force, stable amplitude, uniform and continuous feeding, making material receiving equipment reach the optimal working state.

GZD is small, light, simple and compact. It has no rotary parts and few quick-wear parts. It has strong adaptability to all kinds of ores, especially viscous materials, and it can run under dusty or watery environment.

To avoid dust pollution and noise, GZD Vibrating Feeder supports the closed structure in response to environment protection under the trend of developing “green mines”.

Technical Specs

Customer Cases

Annual 2 Million Tons Solid Wastes for Sand Making Plant

Annual 2 Million Tons Solid Wastes for Sand Making PlantMaterial: mining wastes, construction wastesCapacity: 2,000,000t/yFinished product: aggregates and manuf

Russia 50TPH Granite/Dolomite Crushing Plant

Location:Russia
Material:Granite, dolomite
Input Size:Below 425mm
Output Size:0-5-10-15-40mm
Capacity:50t/h

500TPH Granite Crushing And Sand Making Plant

500TPH Granite Crushing And Sand Making PlantMaterial: graniteCapacity: 500t/hApplication: highway, high-speed railway, mixing stationEquipment:C6X145 Jaw Crush

The Philippines 400-500 t/h Granite Crushing Plant

Our equipment and ability to build the crushing plant have refreshed the customer's impression of Chinese design, and he admired the development of aggregate crushing industry in China.

Russia 300-350TPH Granite Crushing Plant

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

Congo 150TPH Granite Stationary Crushing Plant

Location:Congo
Material:granite
Input Size:Below 500mm
Output Size:0-3mm, 3-6mm, 6-12mm, 12-25mm, 25-40mm
Capacity:150t/h
