Technological Process


Materials are fed to the large bin of the portable crusher. The feeder under the bin evenly feeds materials into the C6X Jaw Crusher for crushing. The materials after crushing will be screened by the vibrating screen first, and some finished products will be screened. The rest of large materials will be sent to the HST Single Cylinder Hydraulic Cone Crusher. After being crushed, materials will be sent to the main belt conveyor. The screen mesh can be set according to the specific needs of customers.

Project Advantages


The process design of the plant greatly reduces the number of belt conveyor and hopper, shortens the equipment installation cycle (the whole plant only takes about 10 days to install and commission production), reduces the failure rate, the energy consumption and the production cost.

The main machine adopts the most advanced crushers. C6X Jaw Crusher adjusts discharge port of hydraulic technology, which is convenient and fast, and HST Cone Crusher adjusts of full hydraulic technology and LCD operation. Thus lamination breaking makes excellent particle type.

When producing 100 tons of hard rock, one station can do it, which is more economical than the previous two stations. It greatly reduces the number of external belt conveyor, and more convenient to move.

The construction period is short, and it is convenient to move. The plant of the portable crusher does not need to be used as the concrete foundation, or as many bins and hoppers. It is suitable for the temporary stock yard of each high-speed railway and expressway, and it is also applied for the mixing station.

Customer Evaluation


The portable crusher was finally chosen after careful comparisons. Since operation, it has been high-yield and stable, attracting many customers nearby.

Video Center

Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h

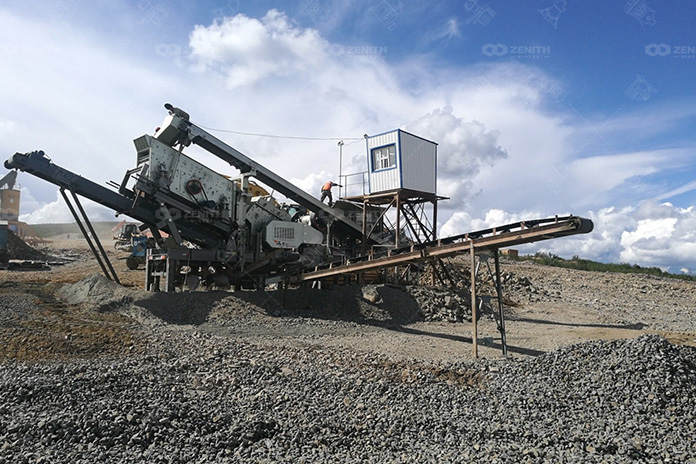

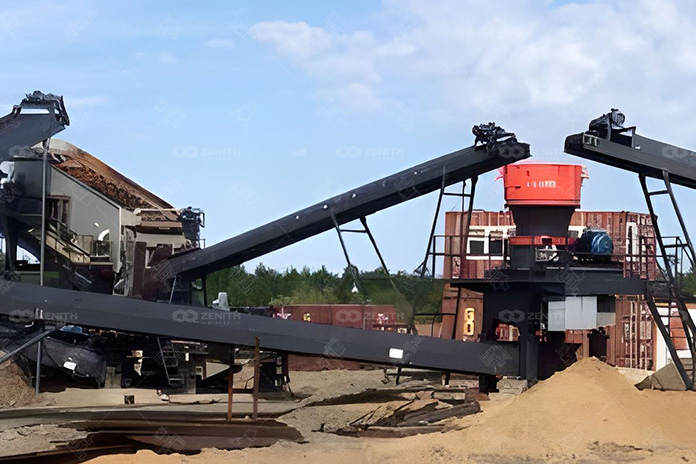

Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h

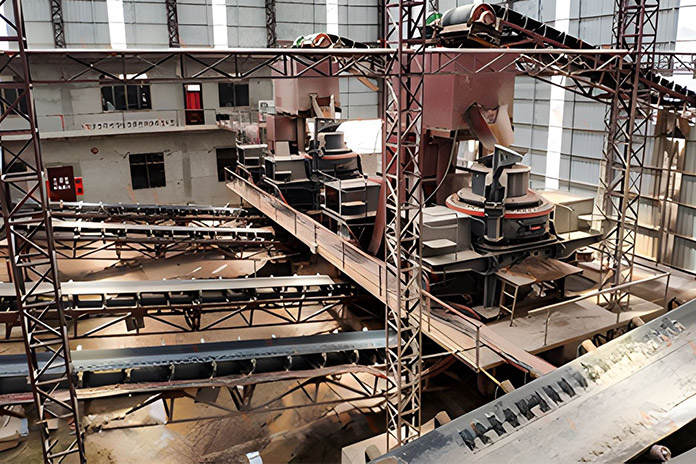

Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
