Closed Circuit vs. Open Circuit: Key Differences Explained

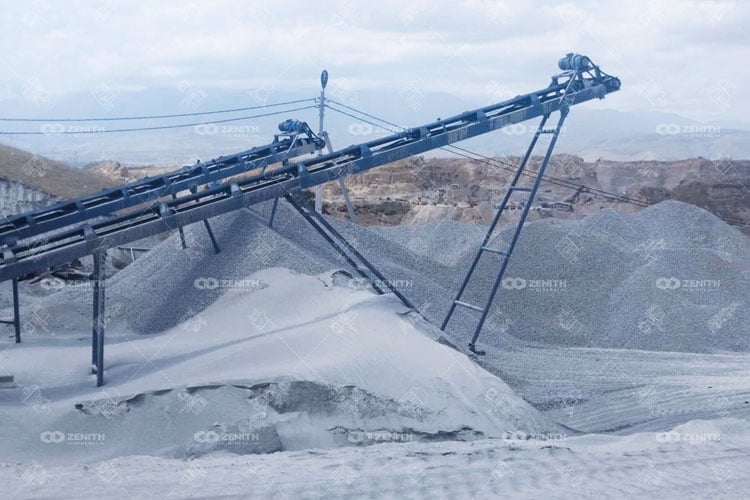

Crushing operations are fundamental in various industries, including mining, construction, and recycling. They are essential for reducing the size of raw materials to produce aggregates, minerals, and other products. When it comes to crushing processes, two primary configurations are commonly employed: open circuit and closed circuit. Understanding the differences between these two types of operations is crucial for optimizing performance, improving product quality, and enhancing overall efficiency.

What is a Closed Circuit?

In contrast, a closed-circuit crushing operation involves the recirculation of material back to the crusher until it reaches a size that can pass through a designated product screen. This configuration is often employed in secondary and tertiary crushing stages, where achieving a specific product size is critical.

Closed Circuit Working Principle Diagram

Material Input → Crusher → Screening

↓

Qualified Product → Finished Storage

↓

Unqualified Material → Return to Crusher

Advantages of Closed Circuit

• Uniform Product Size: Closed circuits are designed to produce a more consistent and uniform product size. By continuously recirculating the material, any oversized particles are reprocessed until they meet the desired specifications.
• Enhanced Efficiency: Closed circuits can be more efficient in size reduction. The ability to recycle material allows for better utilization of the crushing equipment, leading to improved throughput and reduced energy consumption.
• Optimized Screening: The integration of screening equipment in a closed circuit allows for effective separation of oversized material, ensuring that only adequately sized particles are sent to the next stage of processing.

Disadvantages of Closed Circuit

• Increased Complexity: Closed circuit operations are generally more complex than open circuits. They require additional equipment, such as screens and conveyors, which can increase maintenance needs and operational challenges.
• Higher Initial Costs: The need for additional infrastructure and equipment can result in higher capital costs for closed circuit systems compared to open circuits.
• Potential for Blockages: The recirculation of material can lead to blockages in the system, particularly if the material is sticky or contains a high percentage of fines. This can disrupt operations and require additional maintenance.

What is an Open Circuit?

In an open-circuit crushing operation, the feed material is processed through the crusher only once. This configuration is typically employed in primary crushing stages and occasionally in secondary crushing. The key characteristic of an open circuit is that the material does not undergo any recirculation; once it passes through the crusher, it moves on to the next stage of processing or is stockpiled as a finished product.

Open Circuit Working Principle Diagram

Material Input → Crusher → Screening System → Finished Product Discharge (No Material Recirculation)

Advantages of Open Circuit

• Simplicity: Open circuit operations are generally simpler to set up and operate. There are fewer components involved, which can lead to lower maintenance requirements and reduced operational complexity.
• Lower Initial Costs: Because they require less equipment and infrastructure, open circuits can have lower capital costs compared to closed circuits.
• Flexibility: Open circuits can easily accommodate changes in feed material or product specifications, making them versatile for various applications.

Disadvantages of Open Circuit

• Product Size Variability: One of the main drawbacks of open circuit operations is that they may produce a less uniform product size. Since the material is only crushed once, there is a higher likelihood of having a wider range of particle sizes in the final product.
• Inefficiency in Size Reduction: Open circuits may not be as efficient in achieving the desired particle size. The material that is not adequately crushed in a single pass may require additional processing downstream, leading to increased operational costs.

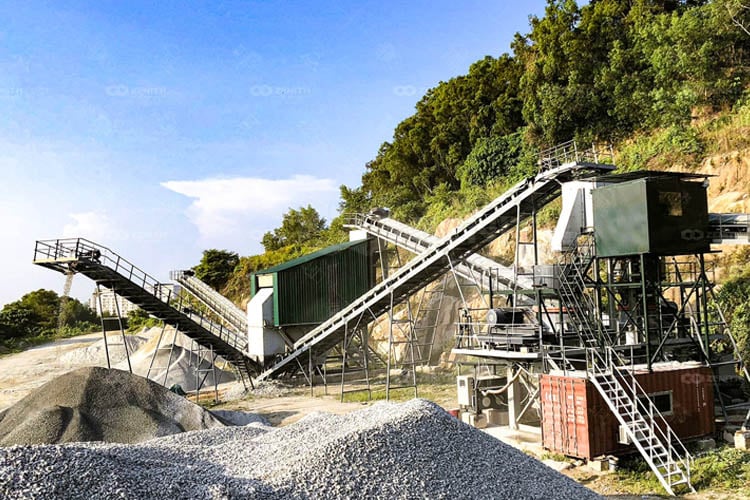

Key Differences Between Open Circuit and Closed Circuit

1. Process Flow

• Open Circuit: Material is processed through the crusher once, with no recirculation. The output is directly moved to the next stage or stockpiled.
• Closed Circuit: Material is continuously recirculated back to the crusher until it meets the desired size specifications, ensuring a more uniform product.

2. Product Uniformity

• Open Circuit: Produces a less uniform product size, which may require further processing.
• Closed Circuit: Produces a more consistent and uniform product size, reducing the need for additional processing.

3. Operational Complexity

• Open Circuit: Simpler setup with fewer components, leading to easier operation and maintenance.
• Closed Circuit: More complex due to the integration of screening and recirculation systems, which can increase maintenance needs.

4. Capital Costs

• Open Circuit: Generally lower initial costs due to fewer equipment requirements.
• Closed Circuit: Higher initial costs due to the need for additional equipment and infrastructure.

Choosing Between Open Circuit and Closed Circuit

The decision to use an open circuit or closed circuit crushing operation depends on several factors, including:

• Material Characteristics: The type of material being processed and its size distribution can influence the choice. For materials that require strict size specifications, closed circuits are often preferred.
• Desired Product Quality: If uniformity of the product size is critical, closed circuit operations are typically the better choice.
• Operational Costs: Open circuits may be more cost-effective for certain applications, especially when the product size does not need to be tightly controlled.
• Production Volume: High-volume operations may benefit from the efficiency of closed circuits, while smaller operations might find open circuits sufficient for their needs.

Optimizing Your Crushing Operations with ZENITH Solutions

In conclusion, both open-circuit and closed-circuit crushing operations have distinct advantages. Open circuits offer simplicity and lower costs, ideal for applications where product uniformity is less critical. Closed circuits provide enhanced efficiency and product consistency, perfect for operations requiring precise size specifications.
