Why Is Your Stone Crusher Low on Capacity? 6 Common Fixes

Stone crushers are indispensable equipment in mining, construction, and aggregate industries, used to crush rocks and stones into smaller sizes for various applications. However, one of the most common challenges faced by operators is low capacity or inefficiency in production. A stone crusher operating below its rated capacity can lead to delays, increased operational costs, and reduced profitability.

This article explores the six most common reasons for low capacity in stone crushers and provides actionable fixes to optimize performance and ensure maximum productivity.

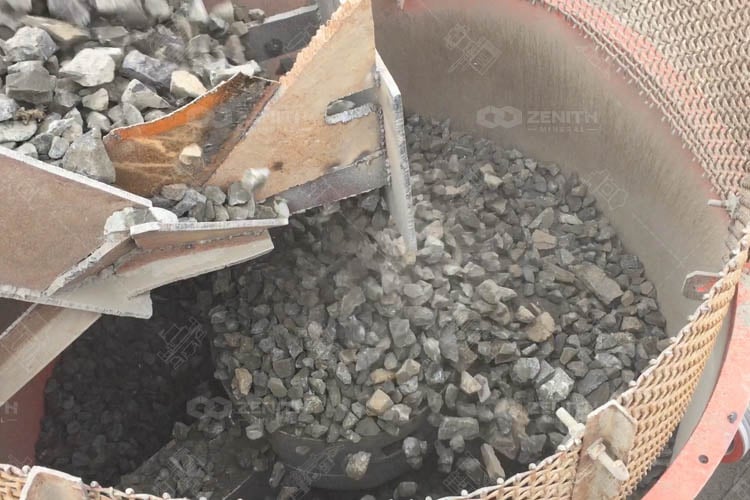

1. Incorrect Crusher Type for the Material

Problem:

One of the leading causes of low capacity in a stone crusher is the mismatch between the crusher type and the material being processed. Different crushers are designed for specific material types, hardness, and particle sizes. Using the wrong type of crusher can lead to inefficient crushing, excessive wear, and reduced throughput.

Common Scenarios:

• A jaw crusher is used for soft materials, resulting in poor crushing efficiency.
• A cone crusher is employed for highly abrasive materials, leading to rapid wear and reduced capacity.
• A hammer crusher is used for hard rocks, causing frequent breakdowns.

Fix:

• Conduct Material Analysis: Analyze the material properties, such as hardness, abrasiveness, moisture content, and particle size distribution.
• Select the Right Crusher: Match the crusher type to the material. For example:
  • Jaw crushers are ideal for primary crushing of hard and abrasive materials.

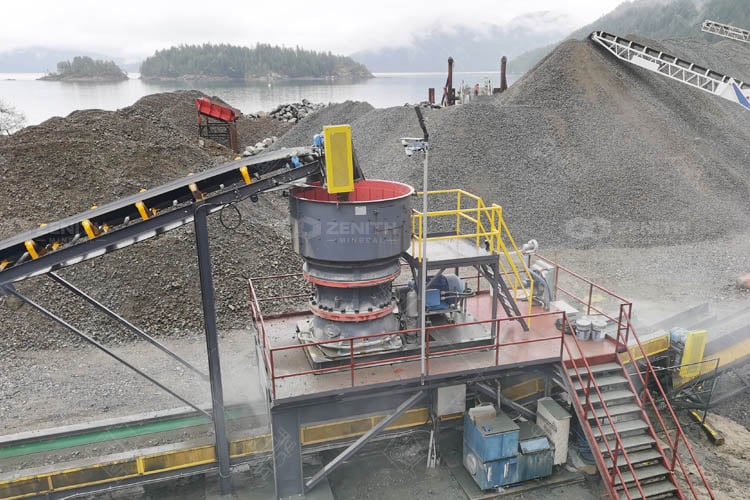

  • Cone crushers are suitable for secondary and tertiary crushing of medium-hard materials.
  • Impact crushers work best for softer and less abrasive materials.
  • Hammer crushers are ideal for lightweight, non-abrasive materials.
• Upgrade Equipment: If the current crusher cannot handle the material efficiently, consider upgrading to a more suitable model.

2. Improper Feed Size and Distribution

Problem:

Feeding oversized or unevenly distributed material into the crusher can cause blockages, uneven wear, and reduced crushing efficiency. Crushers are designed to handle specific feed sizes, and exceeding these limits can result in suboptimal performance.

Common Scenarios:

• Large rocks or uncrushed material entering the crusher.
• Uneven feed distribution, causing uneven wear on the crushing chamber.
• Excessive fines in the feed, reducing the crusher's ability to process larger particles.

Fix:

• Pre-screening: Install a vibrating screen or grizzly feeder to remove fines and oversized material before feeding the crusher.
• Optimize Feed Distribution: Use a uniform feed system, such as a belt conveyor or vibrating feeder, to ensure even distribution of material across the crusher’s inlet.
• Adjust Feed Size: Ensure that the feed material is within the crusher’s specified size range. If necessary, use a secondary crushing stage to reduce oversized material.

3. Worn or Improperly Maintained Parts

Problem:

Worn components such as liners, jaws, mantles, and hammers can significantly reduce the crusher’s capacity. Over time, these parts wear down due to constant impact and abrasion, leading to inefficiencies in the crushing process.

Common Scenarios:

• Crusher liners are worn, reducing the crushing chamber's effectiveness.
• Jaw plates are damaged or improperly installed, causing uneven crushing.
• Rotor or hammer wear in impact crushers reduces crushing force.

Fix:

• Regular Maintenance: Implement a preventive maintenance schedule to inspect and replace worn parts.
• Use High-Quality Spare Parts: Invest in durable, high-quality wear parts to minimize downtime and improve crushing efficiency.
• Monitor Wear Patterns: Regularly check wear patterns to identify uneven wear and adjust settings or replace components accordingly.
• Proper Installation: Ensure all parts are correctly installed and aligned to avoid inefficiencies.

4. Incorrect Settings and Operational Parameters

Problem:

Improper settings such as incorrect discharge opening size, rotor speed, or crushing chamber configuration can lead to reduced throughput and inefficient crushing. Crushers require precise adjustments to operate at peak capacity.

Common Scenarios:

• Discharge opening is too small, causing blockages and reduced material flow.
• Rotor speed in impact crushers is too slow, reducing crushing force.
• Cone crusher settings are not optimized for the material being processed.

Fix:

• Adjust Settings: Regularly check and optimize crusher settings based on the material and desired output size. For example:
  • Increase the discharge opening to improve material flow.
  • Adjust rotor speed for impact crushers to achieve optimal crushing force.
  • Configure cone crusher settings to match the material properties.
• Automated Control Systems: Consider upgrading to crushers with automated control systems that monitor and adjust operational parameters in real-time.
• Operator Training: Train operators to understand the impact of settings on crusher performance and make adjustments as needed.

5. Overloading or Excessive Material Flow

Problem:

Excessive material flow or overloading the crusher can overwhelm its capacity, causing blockages, reduced efficiency, and accelerated wear on components. Crushers have specific throughput limits, and exceeding them can lead to operational issues.

Common Scenarios:

• High material feed rate exceeds the crusher’s capacity.
• Continuous operation without allowing time for material clearance.
• Feeding wet or sticky material that clogs the crushing chamber.

Fix:

• Control Feed Rate: Use a controlled feed system to limit the material flow rate to the crusher’s rated capacity.
• Install Surge Bins: Incorporate surge bins or hoppers to regulate the feed and prevent overloading.
• Handle Wet Material: Pre-dry or screen wet and sticky material to prevent clogging.
• Allow Clearance Time: Operate the crusher in cycles to allow time for material clearance.

6. Poor Infrastructure or Supporting Systems

Problem:

The crusher’s performance is often affected by external factors such as poor infrastructure, inadequate power supply, or inefficient supporting systems (e.g., conveyors, screens, or feeders).

Common Scenarios:

• Conveyor systems are slow or inconsistent, causing uneven feed.
• Vibrating screens are improperly sized, allowing unprocessed material to enter the crusher.
• Power supply issues lead to inconsistent crusher operation.

Fix:

• Upgrade Supporting Systems: Ensure that conveyors, feeders, and screens are properly sized and aligned to support the crusher’s capacity.
• Improve Power Supply: Use a stable and adequate power source to ensure consistent operation.
• Optimize Infrastructure: Design the plant layout to minimize bottlenecks and improve material flow.
• Monitor Supporting Equipment: Regularly inspect and maintain supporting systems to ensure seamless integration with the crusher.

Low capacity in stone crushers can result from various factors, including improper equipment selection, poor feed practices, worn components, incorrect settings, overloading, and inadequate infrastructure. By identifying and addressing these issues, operators can significantly improve crusher performance and maximize productivity.

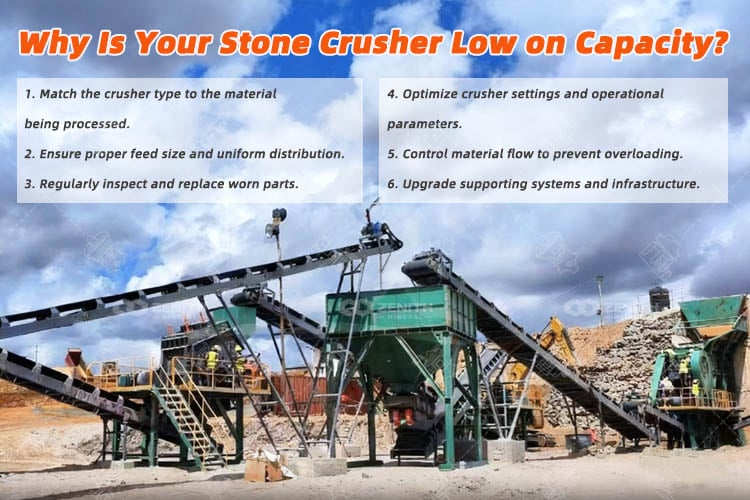

Key Takeaways:

• 1. Match the crusher type to the material being processed.
• 2. Ensure proper feed size and uniform distribution.
• 3. Regularly inspect and replace worn parts.
• 4. Optimize crusher settings and operational parameters.
• 5. Control material flow to prevent overloading.
• 6. Upgrade supporting systems and infrastructure.

By implementing these fixes, you can ensure your stone crusher operates at its full capacity, delivering efficient and cost-effective crushing results for your mining or aggregate operations.
