Manganese ore beneficiation is a complex and highly significant industrial process that lies at the heart of extracting and refining manganese - bearing minerals from raw ores. Manganese, a crucial element with a wide range of applications in various industries, such as steelmaking, battery production, chemical manufacturing, and more, necessitates an efficient and precise beneficiation process to obtain high - quality concentrates. The following detailed exploration of the manganese ore beneficiation production process, aims to provide a comprehensive understanding of each step involved, from the initial handling of raw ore to the final production of manganese concentrate.
Efficient raw ore handling, proper crushing and screening, accurate classification and grinding, effective magnetic separation, and careful tailings and concentrate handling are all essential components of a successful manganese ore beneficiation plant. In addition, the proper use and management of circulating water are also vital for the smooth operation of the plant and for environmental protection.

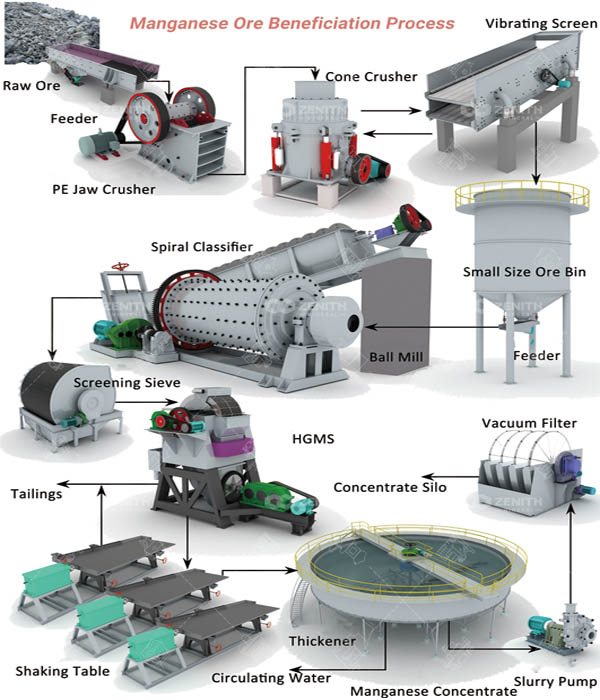

The manganese ore beneficiation process initiates with the raw ore, which is typically mined from the earth in large chunks and often contains a diverse array of impurities. A feeder is employed as the first point of contact in the production line. This feeder is designed to ensure a stable and controlled supply of raw ore into the system. It operates with precision to prevent over - feeding or under - feeding, as both scenarios can disrupt the subsequent processes. For example, over - feeding can cause blockages in the crushers or screening equipment, while under - feeding can lead to inefficiencies and reduced production capacity.
The feeder may be of different types, such as a vibrating feeder or a belt feeder. A vibrating feeder uses mechanical vibrations to move the raw ore from a storage bin or hopper onto a conveyor belt or directly into the primary crusher. It can be adjusted to control the flow rate of the ore, depending on the capacity of the downstream equipment. A belt feeder, on the other hand, consists of a conveyor belt that transports the raw ore at a regulated speed. The choice of feeder depends on various factors, including the type and characteristics of the raw ore, the production capacity requirements, and the overall layout of the beneficiation plant.
Before the raw ore enters the primary crushing stage, in some cases, an initial assessment of its properties may be carried out. This can include analyzing the grade of manganese, the particle size distribution, and the presence of other associated minerals or impurities. Based on this assessment, pre - treatment steps may be considered. For instance, if the raw ore contains a significant amount of clay or slime, a washing or desliming process may be employed to remove these fine - grained materials. This pre - treatment can improve the efficiency of the subsequent crushing and separation processes by reducing the potential for clogging and improving the selectivity of the separation equipment.
The raw ore, after being fed into the system, makes its way into the PE jaw crusher. The PE jaw crusher is a robust and widely used piece of equipment in the primary crushing stage of manganese ore beneficiation. It consists of a fixed jaw and a movable jaw. The movable jaw oscillates back and forth, creating a crushing chamber where the raw ore is compressed and broken into smaller pieces.
The working principle of the jaw crusher is based on the compression of the ore between the two jaws. As the movable jaw moves towards the fixed jaw, the ore is subjected to high pressure, causing it to fracture along its weakest points. The size of the crushed product can be adjusted by changing the setting of the discharge opening between the two jaws. A smaller discharge opening will result in a finer - sized crushed product, while a larger opening will produce coarser particles.
The PE jaw crusher is known for its high crushing ratio, durability, and ability to handle large - sized raw ore. It can effectively reduce the size of the raw ore from several hundred millimeters to a more manageable size, typically in the range of 50 - 150 millimeters, depending on the specific requirements of the beneficiation process.

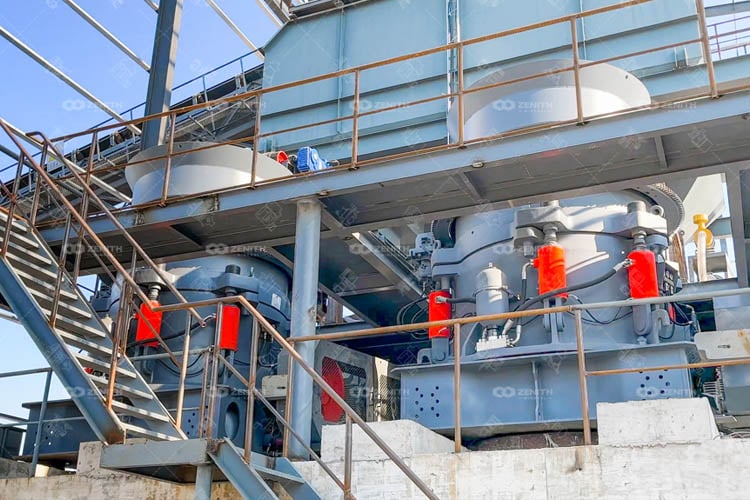

After the primary crushing in the PE jaw crusher, the crushed ore proceeds to the cone crusher for secondary crushing. The cone crusher is designed to further reduce the size of the ore particles that have already been processed by the jaw crusher. It operates on the principle of compression and shearing.
The cone crusher consists of a mantle (the inner - moving part) and a concave (the outer - stationary part). The ore is fed into the top of the crusher and is gradually compressed and sheared as it moves downwards between the mantle and the concave. The cone crusher is capable of producing a more uniform particle size distribution compared to the jaw crusher, making it suitable for preparing the ore for the subsequent screening and separation processes.
The setting of the cone crusher can also be adjusted to control the final product size. Different types of cone crushers, such as standard cone crushers, short - head cone crushers, and hydraulic cone crushers, are available, each with its own advantages and applications. For example, a short - head cone crusher is often preferred when a finer product size is required, while a hydraulic cone crusher offers the advantage of automatic overload protection, which can prevent damage to the equipment in case of unforeseen circumstances, such as the entry of a large, hard object into the crusher.

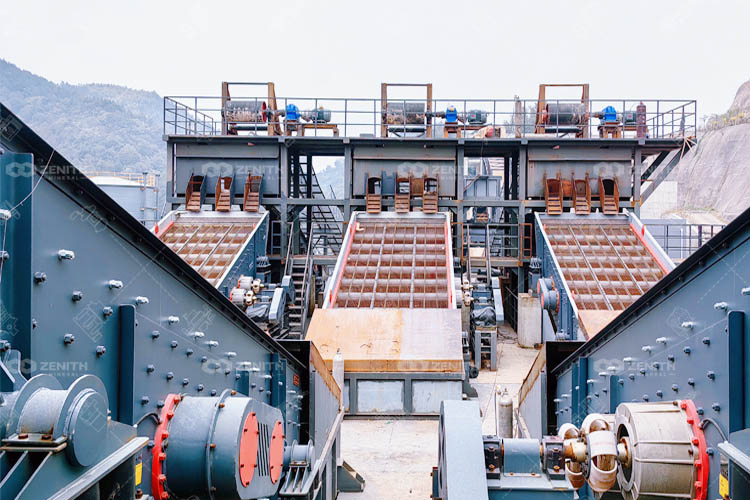

The crushed ore from the cone crusher then undergoes screening via a vibrating screen. The vibrating screen is a key piece of equipment in the manganese ore beneficiation process, which separates the ore into different particle - size fractions. It consists of a screen deck, which is usually made of woven wire mesh, perforated metal plates, or rubber - coated screens, and a vibrating mechanism.
The vibrating mechanism generates vibrations that cause the screen deck to oscillate. As the ore particles are fed onto the screen deck, the smaller particles pass through the openings in the screen, while the larger particles remain on the screen surface. The screen deck can be inclined at a certain angle to facilitate the movement of the ore particles from the feed end to the discharge end.
The vibrating screen can be adjusted in terms of its vibration amplitude, frequency, and screening angle to optimize the screening efficiency. For example, increasing the vibration amplitude can enhance the movement of the ore particles on the screen, but if it is too high, it may cause excessive wear on the screen and the equipment. Similarly, adjusting the screening angle can affect the residence time of the ore particles on the screen, which in turn impacts the separation accuracy.
The vibrating screen separates the ore into two main fractions: oversize and undersize particles. The oversize particles, which are larger than the desired particle size for the next stage of processing, are typically sent back to the cone crusher for further crushing. This recycling of oversize particles ensures that all the ore reaches the appropriate particle size range.
On the other hand, the undersize particles, which are of the desired size or smaller, move on to the next stage of the beneficiation process. The separation of oversize and undersize particles by the vibrating screen is crucial for maintaining the quality and efficiency of the subsequent operations. If the oversize particles are not properly separated and allowed to pass through to the next stage, they may cause problems in equipment such as the spiral classifier or the ball mill, which are designed to handle particles within a specific size range.
The screened ore, which is now in a more uniform particle - size range, is then processed by a spiral classifier. The spiral classifier is used to classify the ore according to particle size and density. It consists of a tank, a spiral mechanism, and a feed box.
The ore is fed into the feed box and then enters the tank, which is filled with water. The spiral mechanism rotates slowly in the tank, and as the ore particles settle in the water, the finer particles are carried away by the upward - flowing water current and discharged from the overflow weir at the top of the tank. The coarser particles, on the other hand, settle to the bottom of the tank and are scooped up by the spiral and discharged from the bottom of the classifier.
The operation of the spiral classifier is influenced by several factors, such as the feed rate, the water flow rate, and the rotational speed of the spiral. By adjusting these parameters, the separation of fine and coarse particles can be optimized. For example, increasing the water flow rate can enhance the carrying capacity of the upward - flowing water current, allowing more fine particles to be carried away in the overflow.
The classification process carried out by the spiral classifier is of great importance in the manganese ore beneficiation process. It helps to ensure that the ore fed into the ball mill is of a suitable particle size range. If the ore contains too many coarse particles, the ball mill may not be able to grind them effectively, resulting in a lower - quality product. On the other hand, if there are too many fine particles, it may cause over - grinding in the ball mill, which can also lead to inefficiencies and increased energy consumption.
In addition, the classification process can also help to separate some of the lighter - density impurities from the manganese - rich particles, improving the overall grade of the ore before it enters the ball mill. This pre - concentration effect can enhance the efficiency of the subsequent separation processes and reduce the load on the more expensive separation equipment, such as the high - gradient magnetic separator.

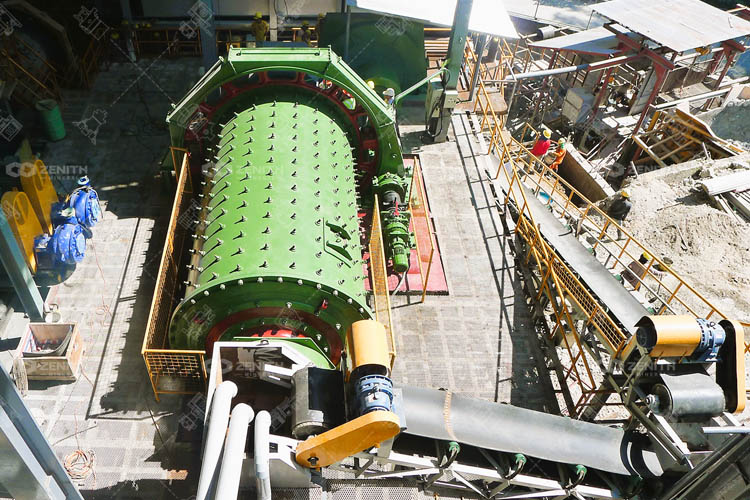

The ore, after being classified by the spiral classifier, enters the ball mill. The ball mill is a key piece of equipment in the manganese ore beneficiation process, which grinds the ore into a fine powder. It consists of a cylindrical shell, which is partially filled with grinding media, such as steel balls or ceramic balls.
The ball mill operates by rotating the cylindrical shell at a certain speed. As the shell rotates, the grinding media are lifted up on the rising side of the shell and then fall or cascade down on the ore particles on the descending side. This impact and grinding action of the media on the ore particles gradually reduces the size of the ore to a fine powder.
The grinding process in the ball mill is a complex one, involving multiple factors such as the size and type of the grinding media, the rotational speed of the ball mill, the feed rate of the ore, and the moisture content of the ore. For example, the size of the grinding media is important as larger balls are more effective in breaking down larger ore particles, while smaller balls are better for fine - grinding. The rotational speed of the ball mill needs to be optimized to ensure that the grinding media achieve the right lifting and falling action for efficient grinding.

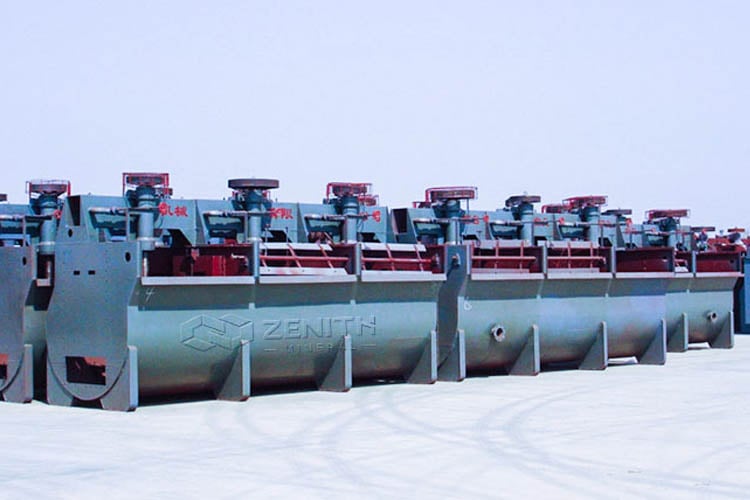

The grinding process in the ball mill has a significant impact on the overall beneficiation efficiency. By reducing the ore to a fine powder, it increases the surface area of the ore, which is crucial for the subsequent separation of valuable manganese minerals from the impurities. A finer - ground ore allows for more effective contact between the ore particles and the separation agents (such as magnetic fields in the case of magnetic separation or flotation reagents in the case of flotation), leading to higher separation efficiency and a higher - grade manganese concentrate.
However, over - grinding should be avoided as it can lead to several problems. Over - ground particles may have a higher surface energy, which can cause them to agglomerate, making separation more difficult. In addition, over - grinding requires more energy and can also increase the wear and tear on the ball mill and the grinding media, resulting in higher production costs. Therefore, it is essential to control the grinding process to achieve the optimal particle size distribution for the subsequent separation processes.
Following the ball - milling process, the powder - like ore is screened again by a screening sieve. The screening sieve at this stage serves a crucial function in removing any large particles or impurities that may have been missed in previous separation processes or that may have formed during the ball - milling operation.
Similar to the vibrating screen used earlier, the screening sieve can be made of various materials, such as woven wire mesh or perforated metal plates. The size of the openings in the sieve is carefully selected to allow the passage of the desired - sized ore particles while retaining the oversize particles.
The screening sieve operates by vibrating or shaking the sieve surface, causing the ore particles to move across the sieve. The smaller particles pass through the sieve openings, while the larger particles are retained on the sieve and are usually sent back for further grinding or processing.
The screening operation after ball - milling is an important part of the quality control in the manganese ore beneficiation process. By removing any oversize particles or impurities, it ensures that the ore fed into the subsequent separation processes is of a consistent quality. This is particularly important for the high - gradient magnetic separator and other separation equipment, which require a relatively uniform feed in terms of particle size and composition to operate efficiently.
If large particles or impurities are allowed to pass through to the separation stages, they can interfere with the separation process, leading to lower - grade concentrates or even damage to the separation equipment. Therefore, the screening sieve plays a vital role in maintaining the quality of the ore throughout the beneficiation process and ensuring the production of high - quality manganese concentrate.

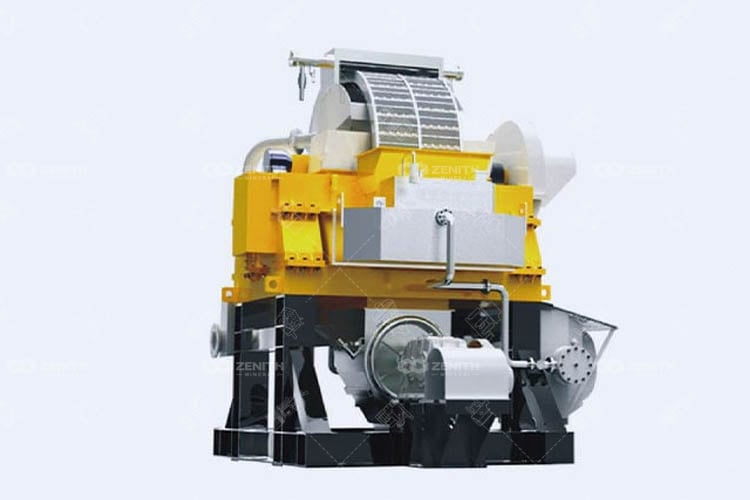

The screened ore then enters the high - gradient magnetic separator (HGMS). The principle of the HGMS is based on the magnetic properties of manganese minerals. Many manganese minerals, such as manganite and pyrolusite, are magnetic to varying degrees, while the non - magnetic impurities, such as quartz and feldspar, are not.
The HGMS consists of a magnetic circuit, a separation chamber, and a matrix. A strong magnetic field is generated in the separation chamber by the magnetic circuit. The matrix, which is usually made of stainless - steel wool or other high - permeability materials, is placed in the separation chamber. When the ore slurry is fed into the separation chamber, the magnetic particles are attracted to the matrix due to the high - gradient magnetic field, while the non - magnetic particles pass through the matrix and are collected as tailings.
The operation of the HGMS can be optimized by adjusting several parameters, such as the strength of the magnetic field, the flow rate of the ore slurry, and the type and size of the matrix. The strength of the magnetic field needs to be strong enough to attract the magnetic manganese minerals but not so strong as to cause the non - magnetic particles to be also attracted due to magnetic interference.
The flow rate of the ore slurry should be controlled to ensure that the magnetic particles have enough time to be attracted to the matrix. If the flow rate is too high, the magnetic particles may not have sufficient time to be captured, resulting in a lower separation efficiency. The type and size of the matrix also play an important role in the separation process. A finer - sized matrix can provide a higher magnetic gradient, but it may also cause clogging if the ore contains a large amount of fine - grained materials.
The tailings, which are the materials that remain after the magnetic separation process and contain mainly non - magnetic impurities and some residual valuable minerals, are further processed. The first step in tailings treatment is often passing them through a shaking table.

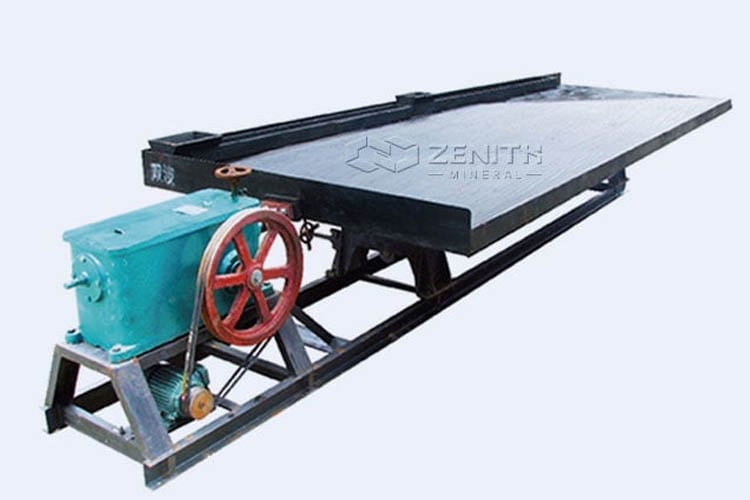

The shaking table uses the differences in density and particle size to separate the remaining valuable minerals from the waste materials in the tailings. The shaking table consists of a deck that oscillates back and forth and is inclined at a certain angle. As the tailings are fed onto the deck, the heavier and coarser particles move towards the lower end of the deck, while the lighter and finer particles are carried towards the upper end by the water film on the deck.
The materials from the shaking table are then sent to a thickener. The thickener is a large tank that uses gravity to separate the solid particles from the liquid in the tailings slurry. The solid particles settle to the bottom of the thickener, forming a thick sludge, while the clear liquid, known as the overflow, is collected at the top. The thickened sludge is then pumped by a slurry pump to a vacuum filter for further dewatering.
The separated manganese concentrate, which is the main product of the beneficiation process, is first sent to the concentrate silo for storage. The concentrate silo is designed to hold a certain amount of the concentrate to ensure a continuous supply for further processing or shipment.
Before shipment, the manganese concentrate may be further processed, such as drying to reduce its moisture content and packaging into bags or containers. The moisture content of the concentrate needs to be controlled within a certain range to prevent caking during storage and transportation and to meet the requirements of the downstream users.
The packaging of the manganese concentrate also needs to be carried out carefully to prevent contamination and loss of the product. Different types of packaging materials, such as plastic bags, woven bags, or bulk containers, may be used depending on the quantity and destination of the shipment.
Circulating water is an integral part of the entire manganese ore beneficiation production process. It serves multiple functions, including cooling the equipment, helping with the suspension and movement of ore particles, and facilitating the separation processes.
In the crushers and the ball mill, circulating water is used to cool the equipment to prevent overheating, which can lead to damage to the machinery and reduced efficiency. In the spiral classifier and other separation equipment, water is used to create a suspension medium for the ore particles, allowing for better separation based on particle size and density.
In addition, the water used in the beneficiation process is often recycled through a water treatment system. This not only reduces the water consumption of the plant but also helps to minimize the environmental impact by reducing the discharge of wastewater. The water treatment system may include processes such as sedimentation, filtration, and chemical treatment to remove impurities and suspended solids from the water before it is reused in the production process.
Efficient raw ore handling, proper crushing and screening, accurate classification and grinding, effective magnetic separation, and careful tailings and concentrate handling are all essential components of a successful manganese ore beneficiation plant. In addition, the proper use and management of circulating water are also vital for the smooth operation of the plant and for environmental protection.
The manganese ore beneficiation production process is a sophisticated and well - coordinated system. By integrating a variety of mechanical and physical separation techniques, it enables the extraction of high - quality manganese concentrate from raw ores, contributing significantly to the global supply of this essential mineral.
