What Are the Differences Between HPGR and SAG Mills?

Grinding—the process of reducing ore particle size—is one of the most energy-intensive steps in mineral processing. Two widely used technologies for this purpose are High Pressure Grinding Rollers (HPGR) and Semi-Autogenous Grinding (SAG) mills. Both play critical roles in ore size reduction, but they differ significantly in terms of energy efficiency, operational characteristics, and suitability for various ore types.

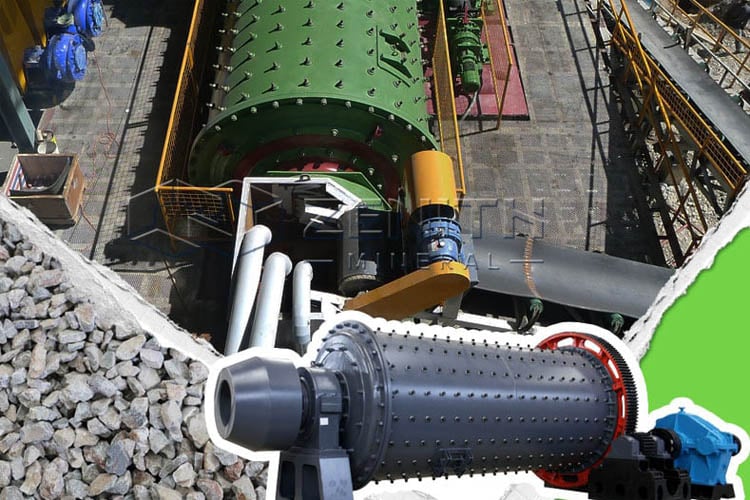

Semi-Autogenous Grinding (SAG) Mills

SAG mills are a type of grinding mill that uses a combination of ore itself and added grinding media (typically steel balls) to break down ore particles. The mill consists of a large rotating drum with a diameter often exceeding 10 meters. The ore and grinding media are fed into the mill, and the rotation causes the grinding media and ore to tumble and collide, leading to particle breakage.

SAG mills are widely used in primary grinding circuits, especially for hard and abrasive ores. They can handle large feed sizes (up to 300 mm or more) and produce a product size typically around 150-300 microns.

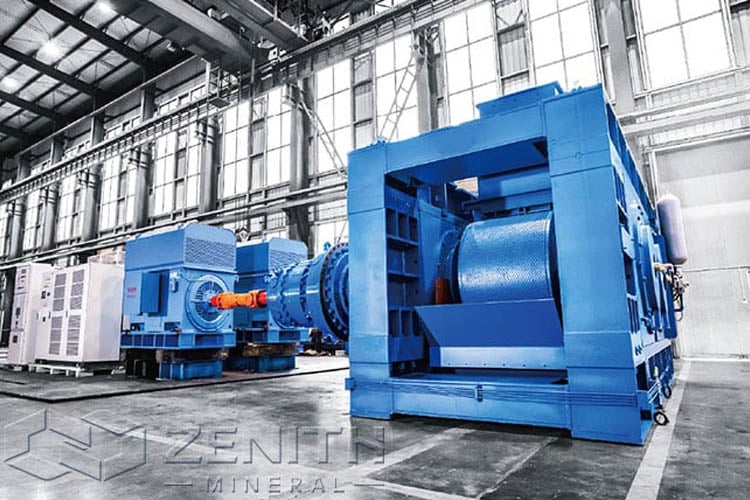

High Pressure Grinding Rolls (HPGR)

HPGR is a relatively newer technology in mineral processing, gaining popularity over the past few decades. It consists of two counter-rotating rolls, one fixed and the other floating, which compress the feed material under very high pressure (up to 150 MPa). The compression causes micro-cracks within the ore particles, enhancing subsequent grinding efficiency.

HPGR is often used as a secondary or tertiary grinding stage but can also be integrated into primary grinding circuits. It is particularly effective with ores that have a high competency contrast or are brittle in nature.

This article explores the fundamental differences between HPGR and SAG mills, providing a comprehensive understanding to help industry professionals make informed decisions.

1. Operating Principles

• HPGR: This technology uses two counter-rotating rollers that apply high pressure to the ore bed, causing micro-fractures and compressive breakage. The process is more of a compression and shear action, which results in a finer and more uniform particle size distribution.
• SAG Mills: SAG mills use a combination of the ore itself and added steel balls to grind the material. The tumbling action inside the rotating mill causes impact and attrition forces that break down the ore.

2. Energy Consumption

• HPGR: HPGRs are widely recognized for their superior energy efficiency. Studies have shown that HPGR can reduce energy consumption by 20-40% compared to SAG mills when used for the same comminution task. The high pressure applied leads to efficient breakage with less energy wasted in unnecessary particle movement and overgrinding.
• SAG Mills: SAG mills typically consume more energy because the grinding action is less selective, with a significant portion of energy lost as heat and noise. Additionally, the tumbling motion involves moving large masses of ore and grinding media, which requires substantial power.

3. Particle Size Distribution and Liberation

• HPGR: The compressive forces in HPGR create micro-cracks in the ore particles, enhancing mineral liberation in downstream processes such as flotation. The particle size distribution tends to be narrower, reducing the amount of fines and overgrinding.
• SAG Mills: SAG mills produce a broader particle size distribution, including a higher proportion of fines, which can sometimes negatively affect downstream processing efficiency.

4. Throughput and Capacity

• HPGR: HPGR units are capable of handling very high throughput rates and are often used in combination with ball mills to optimize overall grinding circuits.
• SAG Mills: SAG mills are well-suited for handling large ore volumes and are often the primary grinding unit in mineral processing plants, especially for harder ores.

5. Operational and Maintenance Considerations

• HPGR: HPGRs have fewer moving parts compared to SAG mills, which can translate into lower maintenance costs and downtime. However, the wear on the rollers can be significant, especially when processing abrasive ores.
• SAG Mills: SAG mills require regular maintenance of liners and grinding media, which can lead to higher operating costs and downtime.

6. Capital and Operating Costs

• SAG Mills: Generally have higher capital costs due to the large size and complexity of the equipment. Operating costs are also significant due to high energy consumption and grinding media expenses.
• HPGR: Typically lower capital costs and reduced operating costs due to lower energy use and elimination of grinding media. However, the cost of roll replacement can be a significant factor.

7. Applications and Suitability

• SAG Mills: Preferred for ores with large feed sizes and when a robust, proven technology is required. Common in large-scale mining operations worldwide.
• HPGR: Increasingly favored for ores where energy efficiency and finer product size are priorities. Well-suited for brittle or competent ores and when integrated into modern comminution circuits.

Summary Table of Key Differences

Both HPGR and SAG mills are integral technologies in modern mineral processing, each with unique advantages and limitations. SAG mills offer versatility and robustness for handling large feed sizes but at the cost of higher energy consumption and operational complexity. HPGR provides a more energy-efficient alternative with benefits in product quality and environmental impact, particularly suited for specific ore types and grinding stages.

In many modern mineral processing operations, a hybrid approach is adopted, where HPGRs are used in conjunction with ball mills or SAG mills to optimize energy use and processing efficiency. This combination leverages the strengths of both technologies, balancing throughput, energy consumption, and operational costs.
