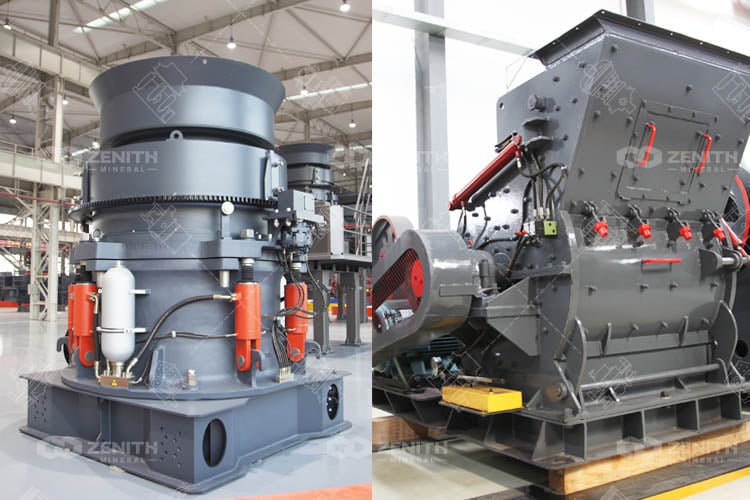

What is a Difference Between Cone Crusher and Hammer Crusher

In the realm of mineral processing, construction, and aggregate production, both cone crushers and hammer crushers play crucial roles in reducing the size of raw materials. However, these two types of crushers possess distinct characteristics in terms of working principles, structural designs, performance capabilities, and application scopes. Understanding these differences is essential for industries to make informed decisions when selecting the most suitable equipment for their specific needs. This article will conduct a comprehensive comparison between cone crushers and hammer crushers from multiple aspects, providing a detailed reference for professionals in relevant fields.

1. Working Principles

Cone Crusher

Cone crushers operate on the principle of compression. The core component of a cone crusher is the crushing chamber, which consists of a mantle (the inner, movable part) and a concave (the outer, fixed part). The mantle gyrates inside the concave, driven by an eccentric shaft. When the mantle moves closer to the concave, it applies high - pressure forces to the materials fed into the crushing chamber. These compressive forces cause the materials to break along their weakest points, gradually reducing their size. As the mantle moves away during the relief stroke, the crushed materials fall downward due to gravity, and new materials are fed into the chamber. This continuous cyclic process enables the cone crusher to achieve a relatively uniform particle size reduction.

Hammer Crusher

Hammer crushers, on the other hand, work based on the principle of impact crushing. Inside the hammer crusher, there is a high - speed rotating rotor equipped with several hammers. When materials enter the crushing chamber, they are immediately struck by the rapidly rotating hammers at high speed. The intense impact force shatters the materials, and the broken pieces are then thrown against the impact plates or breaker plates installed inside the chamber, further reducing their size. Additionally, the materials may also collide with each other during the crushing process, enhancing the crushing effect. The impact - based working principle of hammer crushers allows for a high reduction ratio in a single - stage crushing process.

2. Structural Designs

Cone Crusher

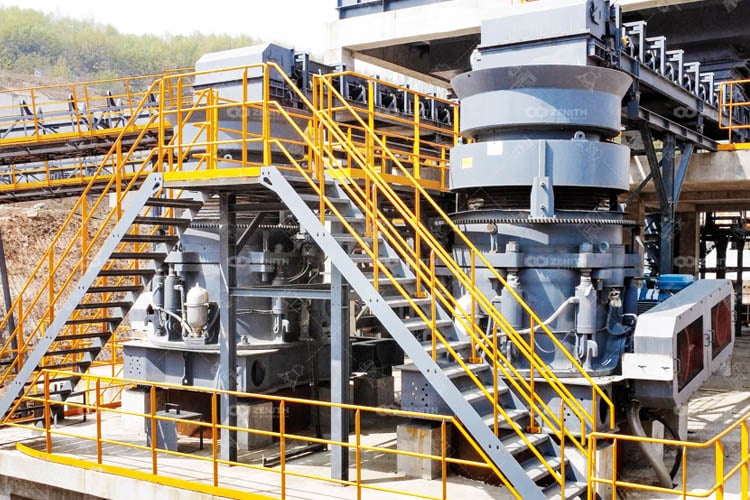

The structure of a cone crusher is relatively complex and robust. The main frame serves as the foundation, providing stable support for all internal components. The crushing chamber, with its conical shape, is designed to gradually reduce the space between the mantle and the concave from top to bottom, facilitating the step - by - step crushing of materials. The eccentric assembly, which drives the gyratory motion of the mantle, is carefully engineered to ensure smooth and precise operation. Moreover, cone crushers are often equipped with a lubrication system to reduce friction between moving parts, and some advanced models may also have a hydraulic adjustment system for the closed - side setting, enabling operators to control the final product size more accurately.

Hammer Crusher

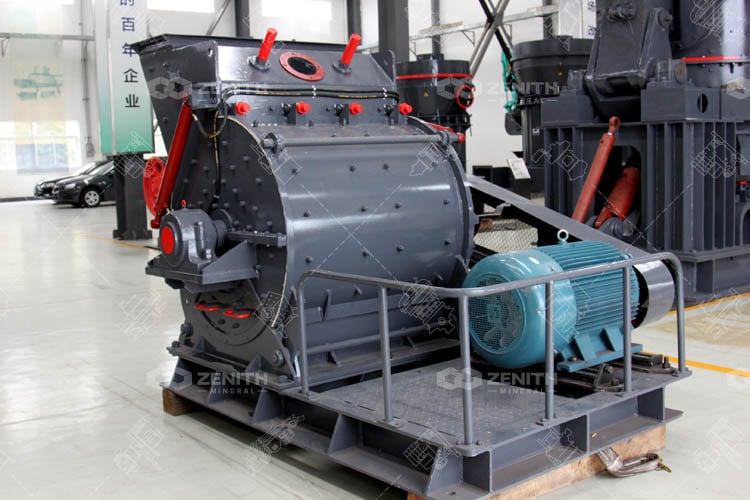

Hammer crushers have a simpler structure compared to cone crushers. The key components include the rotor, hammers, impact plates, and the crushing chamber housing. The rotor is the main rotating part, and the hammers are either fixed or hinged on it. The impact plates are installed on the inner wall of the crushing chamber housing. When the rotor rotates at high speed, the hammers swing outward under the action of centrifugal force. The simple structure of hammer crushers makes them relatively easy to install, maintain, and repair. However, due to the high - speed impact operation, the hammers and impact plates are prone to wear and need to be replaced regularly.

3. Performance Capabilities

Particle Size and Shape

Cone Crusher

Cone crushers are renowned for producing particles with a relatively uniform size and a cubical shape. The continuous compression process in the conical crushing chamber results in a more controlled particle size distribution. This characteristic is highly valued in applications such as the production of high - quality aggregates for concrete manufacturing. Cubical - shaped aggregates can improve the interlocking effect in concrete, enhancing its strength and durability. In road construction, the uniform particle size and shape of cone - crushed aggregates also contribute to the stability and smoothness of the road surface.

Hammer Crusher

Hammer crushers usually produce particles with a more irregular shape and a wider particle size range. The intense impact and multiple - collision crushing process can generate a significant amount of fines and flaky particles. While this may not be ideal for applications that require high - precision particle shapes, in some cases, such as the production of base materials for roads or the preliminary processing of materials for further grinding, the irregular - shaped particles from hammer crushers can still be acceptable.

Crushing Capacity

Cone Crusher

The crushing capacity of cone crushers varies depending on the model and type. Generally, in secondary and tertiary crushing stages, cone crushers can achieve a relatively high throughput. For example, a medium - sized hydraulic cone crusher can process 100 - 300 tons of materials per hour. However, compared to hammer crushers in some primary crushing applications, their initial crushing capacity for large - sized materials may be relatively lower.

Hammer Crusher

Hammer crushers are often designed for high - capacity primary crushing. Their high - speed impact - based working principle allows them to handle large - sized materials efficiently. A large - scale hammer crusher can have a crushing capacity of several hundred tons per hour, making them suitable for quickly reducing the size of large volumes of raw materials at the initial stage of the crushing process.

Crushing Ratio

Cone Crusher

Cone crushers typically offer a moderate to high crushing ratio. In standard cone crushers used for secondary crushing, the crushing ratio can range from 3:1 to 6:1, while short - head cone crushers for tertiary crushing can achieve higher ratios, sometimes up to 8:1 or more. The multi - stage crushing process in cone crushers enables a gradual reduction of material size, ensuring a relatively stable and controlled crushing ratio.

Hammer Crusher

Hammer crushers are capable of achieving a very high crushing ratio in a single - stage operation. In some cases, the crushing ratio of hammer crushers can reach up to 10:1 or even higher. This high crushing ratio makes them highly efficient for quickly reducing large - sized materials into smaller particles, reducing the need for multiple crushing stages in some applications.

4. Application

Cone Crusher

1. Mining Industry

In the mining industry, cone crushers are widely used in secondary and tertiary crushing stages. After the primary crushing of ore by jaw crushers or gyratory crushers, cone crushers are employed to further reduce the size of the ore particles to a level suitable for subsequent grinding and mineral separation processes. For example, in copper mining, cone crushers can crush the primary - crushed copper ore into smaller pieces, facilitating the extraction of copper minerals in the subsequent flotation or leaching processes.

2. Aggregate Production

In aggregate production for construction, cone crushers play a vital role in producing high - quality aggregates. They are especially suitable for applications where strict requirements are placed on the particle size and shape of the aggregates, such as in the production of concrete for high - rise buildings and bridges. The cubical - shaped aggregates produced by cone crushers can improve the workability and strength of concrete, ensuring the quality and safety of construction projects.

3. Quarrying Industry

In quarries, cone crushers are used to process various types of rocks, such as limestone, granite, and marble. They can produce aggregates with different sizes according to market demands, providing materials for road construction, building construction, and other infrastructure projects.

Hammer Crusher

1. Mining Industry

In the mining industry, hammer crushers are mainly used for primary crushing of relatively soft or medium - hard ores. For example, in coal mines, hammer crushers can efficiently crush large lumps of coal into smaller sizes for transportation and further processing. However, for extremely hard ores, the wear on the hammers and other components of hammer crushers may be too severe, limiting their application.

Recycling Industry

Hammer crushers are highly suitable for the recycling industry. They can be used to crush construction and demolition waste, such as concrete, bricks, and asphalt, into reusable aggregates. The high - impact crushing action of hammer crushers can effectively break down these waste materials, and the resulting recycled aggregates can be used in various construction applications, contributing to environmental protection and resource conservation.

Light Industry and Chemical Industry

In the light industry and chemical industry, hammer crushers are often used to crush raw materials with relatively low hardness, such as gypsum, limestone used in the production of cement - related chemicals, and some organic materials. Their simple structure and high - efficiency crushing performance make them a practical choice for these industries.

5. Operational Costs and Maintenance

1. Initial Investment

Cone Crusher

Cone crushers, especially advanced hydraulic cone crushers, generally require a higher initial investment. The complex structure, high - precision manufacturing process, and advanced control systems contribute to the relatively high cost. For example, a medium - sized hydraulic cone crusher may cost hundreds of thousands of dollars, which can be a significant financial burden for some small - scale enterprises or start - up projects.

Hammer Crusher

Hammer crushers usually have a lower initial investment due to their simpler structure and manufacturing process. A standard hammer crusher can be purchased at a relatively affordable price, making them more accessible to small - and medium - sized enterprises with limited capital.

2. Energy Consumption

Cone Crusher

Cone crushers are relatively energy - efficient in the secondary and tertiary crushing stages. The continuous compression process and optimized design of the crushing chamber enable them to utilize energy more effectively. On average, a cone crusher may consume 1 - 3 kWh of electricity per ton of materials crushed, depending on the specific model and operating conditions.

Hammer Crusher

Hammer crushers, due to the high - speed rotation of the rotor and the intense impact - based crushing process, generally consume more energy. The energy is not only used for crushing the materials but also to overcome the resistance caused by the high - speed rotation and impact. The energy consumption of hammer crushers can reach 3 - 5 kWh per ton of materials crushed, resulting in higher operational costs in the long run.

3. Maintenance and Wear Costs

Cone Crusher

The main components of cone crushers that are subject to wear are the mantle and the concave. Although these parts need to be replaced periodically, the replacement process is relatively complex and requires professional skills. The cost of replacing the mantle and concave can be relatively high, especially for high - quality wear - resistant materials. In addition, the lubrication system and other components of cone crushers also need regular inspection and maintenance, increasing the overall maintenance cost.

Hammer Crusher

The hammers and impact plates of hammer crushers are the main wear - parts. These parts are more prone to wear due to the high - speed impact operation and need to be replaced more frequently. Although the individual cost of replacing hammers and impact plates may be relatively low, the frequent replacement requirements can also lead to a significant increase in maintenance costs over time. Moreover, the high - speed operation of hammer crushers may also cause other components to wear more quickly, further increasing the maintenance workload and cost.

6. Environmental Impact

Dust Generation

Cone Crusher

Cone crushers generate relatively less dust during operation. The enclosed crushing chamber and the continuous compression process create a more controlled environment, reducing the amount of dust released into the air. However, dust may still be generated during the feeding and discharging processes. To address this issue, cone crushers can be equipped with dust - collection systems, such as dust hoods and bag filters, to effectively capture and remove dust particles.

Hammer Crusher

Hammer crushers tend to generate more dust due to the high - speed impact and the multiple - collision crushing process. The intense impact can cause fine particles to be ejected into the air, and the movement of materials inside the crushing chamber also increases the likelihood of dust generation. To mitigate dust pollution, hammer crushers often require more comprehensive dust - suppression measures, such as water spraying systems, dust - collection hoods, and powerful ventilation systems.

Noise Pollution

Cone Crusher

Cone crushers produce relatively lower noise levels during operation. The smooth and continuous gyratory motion of the mantle results in a more stable and less noisy operation. The noise generated by cone crushers is usually in the range of 80 - 90 decibels, which can be managed with standard noise - reduction measures, such as installing sound - proof enclosures.

Hammer Crusher

Hammer crushers generate relatively high noise levels due to the high - speed rotation of the rotor and the impact of hammers on the materials. The noise level of hammer crushers can reach 100 decibels or even higher, posing a greater threat to the working environment and the health of operators. Special noise - reduction measures, such as using vibration - dampening mounts, sound - absorbing materials, and fully enclosed structures, are often required to reduce noise pollution.

Cone crushers and hammer crushers have their own unique characteristics and application advantages. Cone crushers are suitable for applications that require high - quality, uniform - sized products, especially in secondary and tertiary crushing stages in the mining and construction industries. Hammer crushers, on the other hand, are more suitable for primary crushing of relatively soft materials and recycling applications due to their high crushing ratio and simple structure. When choosing between the two, industries need to comprehensively consider factors such as material characteristics, production requirements, operational costs, and environmental impacts to select the most appropriate crushing equipment, so as to achieve the best economic and social benefits.
