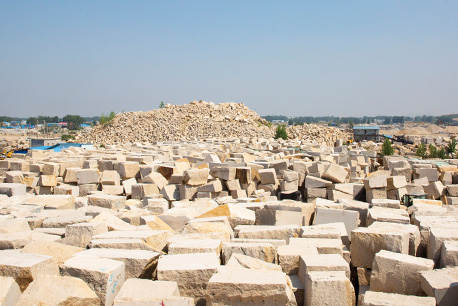

Marble Features


Mohs’ hardness:2.5-5
Marble is a kind of recrystallized limestone and its composition is CaCO3 (50%), which have variety of colors, usually with distinct patterns and many mineral grains.
Limestone softens under high temperature and pressure re-crystallizing to form marble as the minerals change.
The leftover material of marble has high secondary use value, which can be processed into fines and widely used in the chemical industry.

Powder Fineness (Mesh) Uses of the Product Recommended Equipment
80-200 Construction industry, wall coating, chemical raw material filling, weighting, paper making, sealant, feed additive MTM、MTW、LM
250-300 Plastic, rubber, paint, waterproof material MTM、MTW、LM
350-400 Deduction plate, building materials, chemical raw materials XZM、LUM
400-600 Ointment, soap XZM、LUM
≥800 Rubber, plastic, cable, PVC filler XZM、LUM
≥1250 PVC, PE, paint, paper coating, printing ink XZM、LUM

Marble processing technology


1. Breaking stage: The bulky ore is broken by the crusher to a fineness of 15-50mm (Mill feeding standard), if the leftover material meets the feed size requirements, no breakage is required.

2. Milling stage:The qualified materials enter the mill grinding chamber uniformly and quantitatively through the feeding system to grind into powder.

3. Grading stage: Under the action of airflow, the material after grinding will enter into classifier to classified, the unqualified powder will be returned to the grinding chamber for re-grinding.

4. Powder collection stage:The powder conforming to the fineness enters the powder collection system along the airflow through the pipeline, and the gas powder is separated, and the finished product will be send to the finished product bin by the conveying device.Then use powder tanker or automatic baling machine for packaging.

Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
