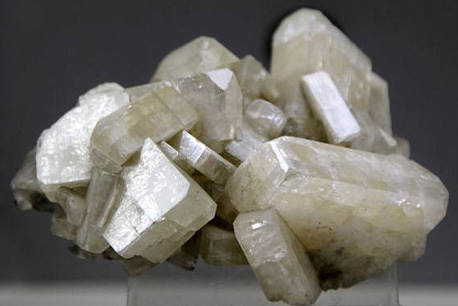

Barite Features


Mohs’ hardness: 3-3.5
Barite is the most common mineral of barium (Ba) and its composition is barium sulfate.
It can be applied into white pigment (commonly known as lithopone), and it can also be used in many other industrial fields, such as chemical, paper, textile, glass and oil.

Powder Fineness (Mesh) Uses of the Product Recommended Equipment
60 Chemical, glass MTM、MTW、LM
150-325 Petroleum drilling, sewage disposal MTM、MTW、LM
200mesh D97,325mesh D85 Oil drilling MTM、MTW、LM
≥325 Rubber, plastic, paint fields. XZM、LUM

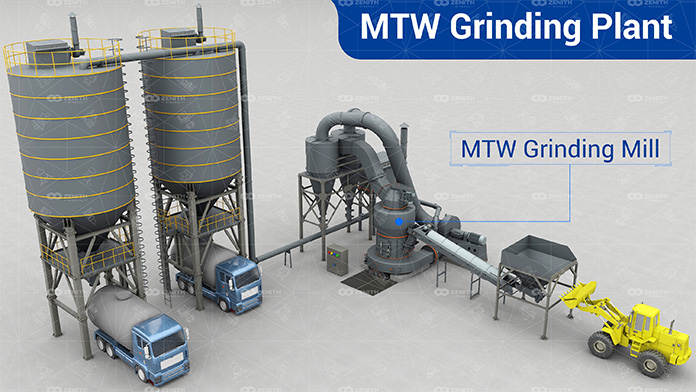

Barite processing technology


1. Breaking stage: The ore(which has been homogenized ) is broken by the crusher to a fineness of 15-50mm (Mill feeding standard)

2. Milling stage: The qualified materials enter the mill grinding chamber uniformly and quantitatively through the feeding system to grind into powder.

3. Grading stage: Under the action of airflow, the material after grinding will enter into classifier to classified, the unqualified powder will be returned to the grinding chamber for re-grinding.

4. Powder collection stage: The powder conforming to the fineness enters the powder collection system along the airflow through the pipeline, and the gas powder is separated, and the finished product will be sent to the intermediate silo by the conveying device.

Customer Cases


Oman 300TPH Limestone Crushing Line

Location:Saham, Oman
Material:Limestone
Input Size:Below 720mm
Output Size:0-5mm, 5-10mm, 10-20mm, (Oman standard)
Capacity:300t/h


Russia 300-350TPH Granite Crushing Line

Location:Russia
Material:Plagiogranite
Input Size:Below 700mm
Output Size:0-5mm, 40-70mm (0-5mm, 5-10mm, 10-20mm)
Capacity:300-350t/h


Mecca 500TPH Granite Crushing Line

Location:Mecca
Material:Granite
Input Size:Below 1000mm
Output Size:0-10mm, 10-13mm, 13-20mm, 20-25mm
Capacity:400-500TPH (12 hours per day)


Saudi Arabia 600TPH Granite Crushing Line

Location:Saudi Arabia
Material:Granite
Capacity:600t/h


Vietnam 250TPH Limestone Crushing Line

Location:Vietnam
Material:Limestone
Input Size:Below 210mm
Output Size:0-3mm
Capacity:250t/h


Zambia 200TPH Granite Crushing Line

LineLocation:Zambia
Material:Granite
InputSize:Below 650mm
OutputSize:0-15mm,5-9mm,9-19mm,19-23mm
Capacity:200t/h
